Walkaround #1105

F-117 Nighthawk

Reference photos by Steve Bamford

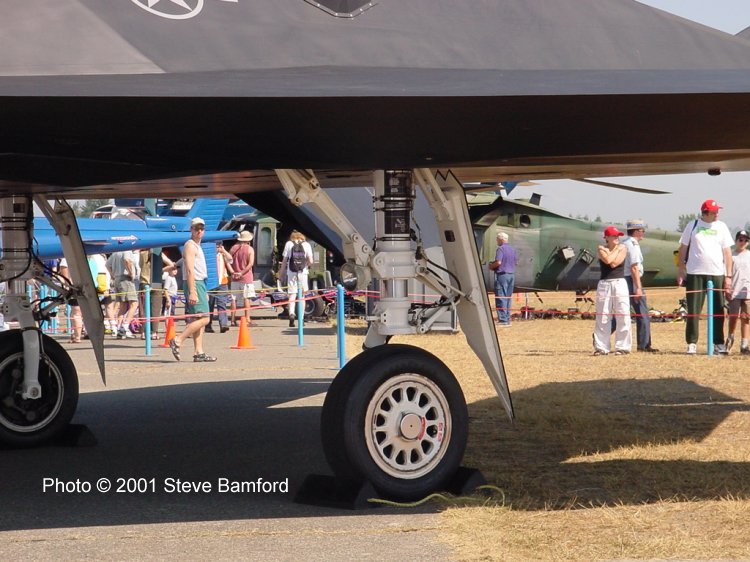

main landing gear from left side





These photos were taken at the Abbotsford Airshow 2001.

Steve Bamford

Click on images below to see larger images

main landing gear from left side

shot from rear showing angles of control surfaces and tail (notice rudders are at different angles...the rudders on the F-117 are independent of each other).  Because the F-117 has not horizontal control surfaces....the angled rudder have to act as horizontal and vertical control surfaces.
shot from rear showing angles of control surfaces and tail (notice rudders are at different angles...the rudders on the F-117 are independent of each other).  Because the F-117 has not horizontal control surfaces....the angled rudder have to act as horizontal and vertical control surfaces.
shot from rear showing angles of control surfaces



Click on images below to see larger images

main landing gear from right side...Item attached to side of plane is there to give plane a radar signature in peace time....do not include this on a  model in a war zone.

main landing gear from right side
nose landing gear from right side



Photos and text by Steve Bamford
