Walkaround #073

Blackburn Buccaneer

Reference photos by Ted Taylor

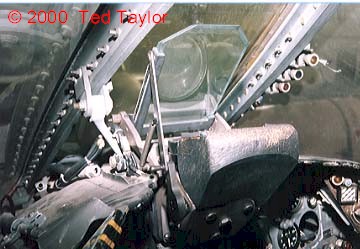

front windscreen





These photos were taken at Abbingdon damage repair facility just before they moved away, this aircraft is an RAF machine and not the standard Navy aircraft.

Ted Taylor

Click on images below to see larger images

rear screen

port side
front office
 stbd side



Click on images below to see larger images

port side

rear office
stbd side
port flap



Click on images below to see larger images

port exhaust

canopy runback
port wing fold
fuselage section of nose fold



Click on images below to see larger images

outer view

outer section of nose fold
port view of open dive brakes
dive brake from above



Click on images below to see larger images

main ram

 interior, note red tape covering sharp edges
note the angle of the aerial blades
 see the gaps



Click on images below to see larger images

general shots  for additional details, note intake colour

general shots  for additional details, note intake colour

general shots  for additional details, note intake colour



Photos and text by Ted Taylor
