Saab B 17A

These photos were taken by Per Börjeson

  Sweden National Day 2005

(click on the image below to load the full size photo)

(use your back button to return to this page after viewing full size photo)

Photos directly below were taken at Västerås, Sweden on May 22 2005.

This is B 17A s/n 17239, currently the only airworthy example of the type. The airplane was restored to it's original wartime condition in 1996-1997, in celebration of Saab's 60th anniversary. I hope these images will come in handy for people building the Marivox kit. There were three basic versions made of the Saab 17, mainly differing by their engines. The 17A uses a P&W R-1830, the 17B had a Bristol Mercury while the 17C used a Piaggio XI bis RC40. Another feature is that the canopy is 10 mm higher on the A and C marks, compared to the B.
A word of notice on the propeller of this airplane; the B 17A originally used a Swedish made wooden propeller (pretty similar to some German props). This prop was replaced by Hamilton Standard on many aircraft in the postwar years. The B 17As of the Imperial Ethiopian Airforce used the same type of Hamilton Std mounted to the C-47.

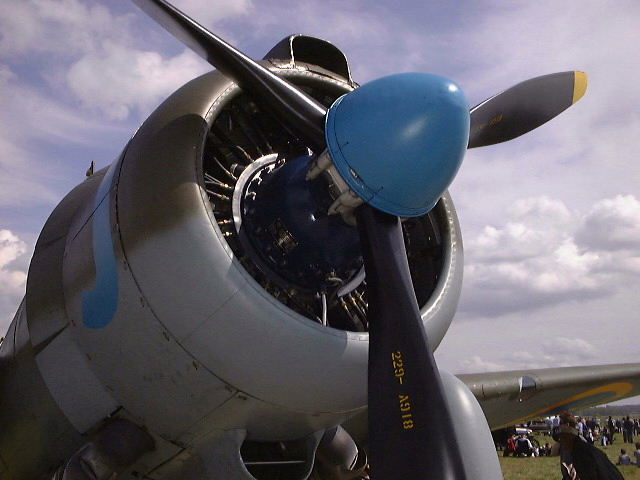

Overall view of the engine and propeller. This
airplane has the postwar Hamilton Std prop. The engine
is a Swedish made R-1830, designated STWC 3.
The exhaust system. Note exhaust cooling inlet and
suspension strut. The circular hole, just aft of the
cowl flaps, is a connecting point for the flywheel
turn handle. Also note the the vent tube and open oil
cooler flap.
Closeup of the oil cooler. Note that tiny
ventilation pipe to the right.
Here's a shot of the main landing gear retracting
mechanism. Landing gear details are painted in
underside colour.



Closeup of right main gear strut and wheel. The
tyres of this airplane are plain while service planes
had tires with a tractor style pattern, a typical
feature of many Saab aircraft.
A shot of the main gear rear fairning.
Lower centre fuselage section. The tube is an
extension pipe for a LF drag anthena. The tiny VHF anthena just aft of bomb bay doors is a post
restoration addition.
A general view of the tail section.



Fuselage centre section and cabin area. Another shot of the cabin area with some interior
detail visible. Sorry about all those people, it was quite crowded and hard to get a clean shot.
Wing tip with pitot tube. Note the navigation
light.
More wing detail. Note the hatch to the left of
the landing light. This is a cover for opening where
the machine gun barrels would be on a service
airplane.



A closeup of starboard wing jacking point. View of the bomb bay, facing aft. Forward bomb bay section. Note the bottom of the
control column with aileron wires and parts of the
instrument panel being visible through an opening in
the cockpit floor. Bomb bay doors are partially closed
and therefore the mechanism is slightly offset.

Photos and text © by Per Börjeson
