Walkaround #462

US Army's Doak-16 VTOL experimental plane

Reference photos by Charles Kalina

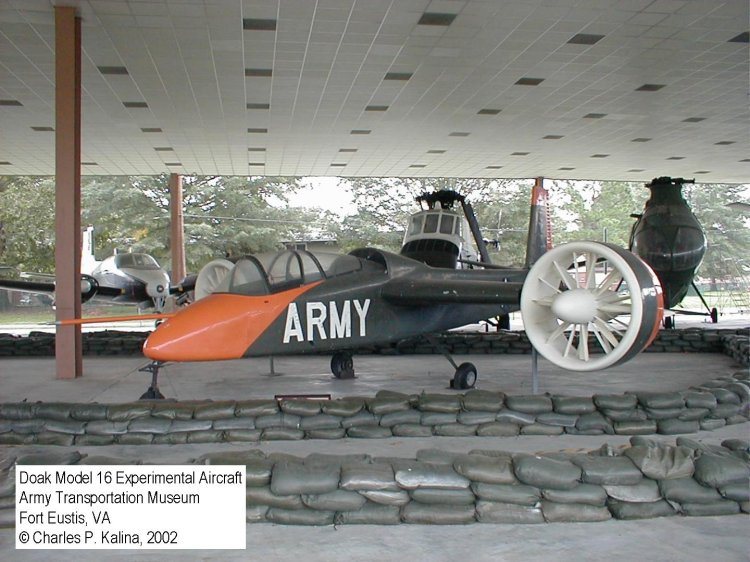

front view





The Doak Model 16 (also called the Doak VZ-4DA) was the first tilt-rotor aircraft, using ducted fans driven by a turbine in the fuselage.  Its first flight was in 1958;  in 1973 it was transferred to the U.S. Army Transportation Museum at Fort Eustis, Virginia.  This aircraft was the only VZ-4DA built (serial #56-9642)  56-9642).  It was 9.75m long with a 7.75m wingspan (including the fans).

Charles Kalina

Click on images below to see larger images

fan

joint

nose
nosegear



Click on images below to see larger images

Pitot

tail

upper
wheel



Click on images below to see larger images

cockpit



Photos and text by Charles Kalina
