Walkaround #183

Lockheed Martin YF-22 Raptor

Reference photos by Jeff Keip

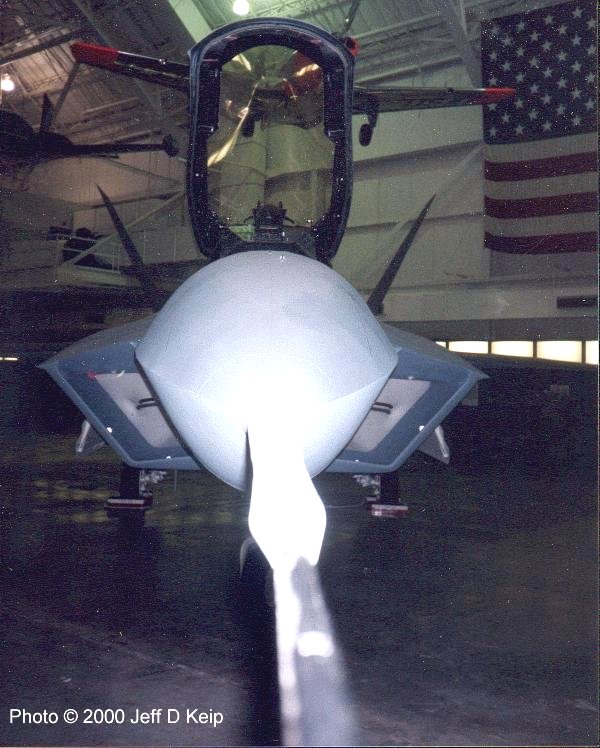

View of nose of aircraft





Photos directly below were taken at the USAF Museum in Dayton, Ohio, USA on Oct 25, 2000.

This web page contains cockpit and landing gear photos.

Jeff Keip

Click on images below to see larger images

top of ejection seat, and bottom side of canopy detail

fuselage above left inlet
cockpit area, viewed from right rear
base of canopy, viewed from right rear



Click on images below to see larger images

canopy, viewed from right rear

nose, cockpit, and intake area, viewed from right hand side.
area in front of HUD
HUD assembly, viewed from the side.



Click on images below to see larger images

cockpit

cockpit, right sidewall
ejection seat, and throttle assembly
cockpit , showing the ejection seat, and some right sidewall details.



Click on images below to see larger images

Cockpit L0

throttle quadrant
cockpit, left side.
cockpit, right side behind seat



Click on images below to see larger images

nosegear, and intake, viewed from front left of aircraft

nose landing gear assembly
nose landing gear bay
nose landing gear bay



Click on images below to see larger images

nose landing gear bay, looking aft

nose landing gear bay, middle area
nose landing gear, viewed from rear
nose landing gear bay



Click on images below to see larger images

main landing gear strut pivot

RMLG Middle Bulkhead
lower portion of main landing gear strut
main landing gear, viewed from aft



Click on images below to see larger images

drag brace, and retract strut

main landing gear bay, top forward portion
hydraulic hoses in the left main landing gear bay
left main landing gear door actuating strut



Click on images below to see larger images

left main landing gear bay

middle bulkhead, in left main landing gear bay
right mid fuselage
right main landing gear bay



Click on images below to see larger images

right main landing gear door

right main landing gear door
right main landing gear bay, looking forward
hydraulic hoses in the right main landing gear bay



Click on images below to see larger images

right main landing gear bay

brake accumulators in the right main landing gear bay.
right main landing gear bay, forward portion
forward portion of right main landing gear bay



Click on images below to see larger images

right main landing gear, looking aft

RMLG middle bulkhead, looking aft
right main landing gear, control box.



Photos and text by Jeff Keip
