Walkaround #001

Rockwell B-1B Lancer

Reference photos by Steve Bamford

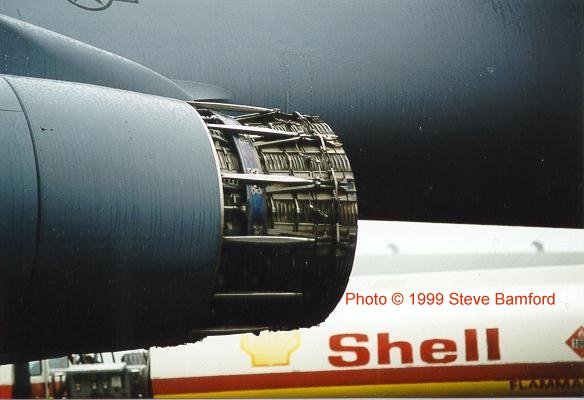

engine exhaust on outer engine on left wing as seen from left side of plane





Photos taken at Abbotsford International Airshow August '99

Steve Bamford

Click on images below to see larger images

left side of left main landing gear as seen from left side

wing joint area behind left wing as seen from left side

tail as seen from left side

navigation light at front of left wing root joint as seen from
the left side



Click on images below to see larger images

nose gear area on fuselage as seen from front side of nose
gear

nose gear as seen from front side of nose gear

main landing gear as seen from front left side of plane

nose gear as seen from left rear area of plane, note the crew
access ladder



Click on images below to see larger images

close-up of nose gear as seen from left side

close-up of nose area..notice name of plane.."Home
Improvement".gotta' love dark humour ;-)

close-up of area behind nose and before wings as seen from left side of plane

close-up of wing root area as seen from left side of plane



Click on images below to see larger images

 close-up of left side of tail area as seen from left side of
plane

close-up of left main landing gear as seen from the front of landing gear

 close-up of left main landing gear as seen from the front left side of landing gear

 close-up of left main landing gear struts as seen from the front left of landing gear



Click on images below to see larger images

close-up of right and left main landing gear struts as seen from the front left of landing gear

wing joint area behind left wing as seen from left rear side of plane

two left engines as seen from the rear.pictures like this are
what AMS is all about!!!

left main landing gear as seen from the rear



Click on images below to see larger images

two right engines as seen from the left rear

tail as seen from right rear..the sheet metal pieces sticking out from the fuselage tail area are vortex generators...They guide the air around that lower portion of the vertical stab in order to smooth air flow around it. .these were painted the same colour of plane

 navigation light at tip of right wing.this light appeared clear
blue to me

 navigation light at front side of right wing root..this light
appeared clear blue to me



Click on images below to see larger images

close-up of nose area as seen from right side

 close-up of area behind nose area as seen from right side

nose landing area as seen from right side

nose gear as seen from front left side



Click on images below to see larger images

close-up of right main landing gear strut..combine this picture with photo on right for full picture

close-up of right main landing ...combine this picture to left
 for full picture.

close-up of right main landing gear

 close-up of right main landing ...this is same picture as picture above to the right
except that guy has left!!!



Click on images below to see larger images

close-up of left main landing gear struts as seen from the front left of landing gear

 close-up of "nose gear well" as seen from left rear of nose gear and looking up and forward



Photos and text © by Steve Bamford
