1/72 Heller Su-30MKM

Royal Malaysian AF

by Ken Duffey

--------------------

  Malaysia National Day 2008

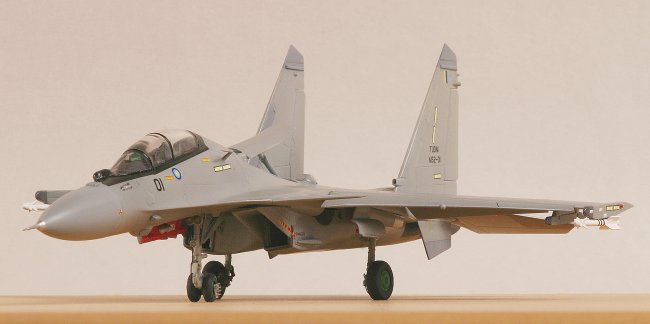

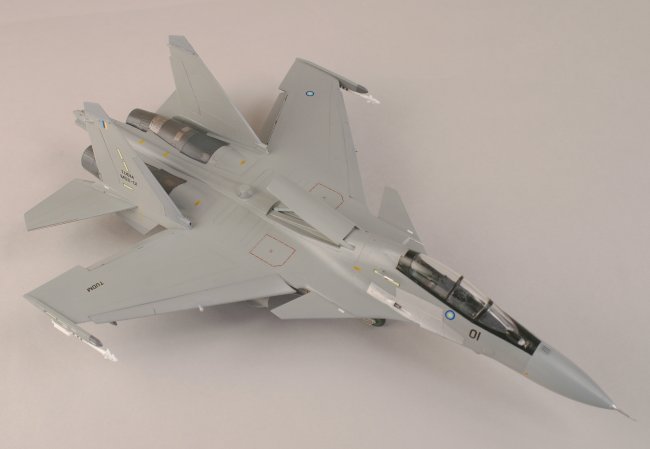

The Su-30MKM was made by converting the Heller Su-27UB. I added canards and their mounting shoulders from thick plastic card, the rudders were increased in chord, the RMAF-specific MAWS and Laser Warning receivers were added and downward-deflected Thrust Vector Control nozzles were fitted.

Click on images below to see larger images







The twin-wheel nose undercarriage was scratch-built, complete with its distinctive slatted anti-FOD guard. Other changes were made to the cockpit - MFD screens etc and the Infra-Red Search-and-Track (IRST) ball on the windscreen was offset to starboard and a retracted IFR probe was fitted.

The model was airbrushed using Humrol enamels - Hu-165 is a good match.  The decals came from the RMAF sheet by VFA Decals - but I had to make my own 'slime lights' that are fitted to the fuselage, wingtip rails and fin.

Ken

Click on images below to see larger images













Photos and text by Ken Duffey
