1/72 Sierra Scale Models Curtiss Hawk F6C

Gallery Article by Carmel J. Attard on Feb 28 2019





The Kit: Curtiss Hawk F6C
Make: Sierra Scale Models of CA
Kit No: 48-007
Cost: ?
Scale: 1/72
Type: A vac-form kit with white metal parts like struts, exhaust stacks and propeller.

History
In 1925 the US Navy ordered nine examples of the Model 34C Hawk fighter under the designation F6C-1. These aircraft were virtually identical to to those of US Army ‘s P-1 series and was only a land-based machine. These were intended originally for shore use by the US Marine Corps. In fact only five aircraft were delivered as F6C-1, the remaining four being completed as F6C-2 (Model 34 D) standard, strengthened for carrier operations and were then fitted with arrestor hook. During 1927 the USN obtained 35 examples of F6C-3, a modified version of the F6C-2. These aircraft were followed by 31 examples of F6C-4

The Hawk F6C-3 fighters were flown from 1928 by the VF-5F squadron, which became VB-1B in July of that year in difference to the Hawk’s intended fighter-bomber role, on the carrier USS Lexington. For a short period VB-1B operated its F6C-3machines as twin-float seaplanes. Other F6C-3 warplanes served with shore based VF-8M squadron of the US Marine Corps.

The US Navy decided that the maintenance of water-cooled engines on board carriers presented unwarranted problems, with the result that the radial engined F6F-4 was used to equip the VF-2B. The aircraft were then passed to USMC units. Four F6C-2s were converted from F6C-1 standard for carrier operations and operated from USS Langley.

Click on images below to see larger images

The kit
The kit follows on familiar Sierra lines where the fuselage is split vertically and the flying surfaces split top and bottom. Contained in a polythene bag a vac moulded styrene sheet that contained all the vac form parts. These have reasonable surface finish with fine panel lines. Brief assembly guidelines are given and adequate 1/48 scale plans provide three-plan views and marking detail, which come on a two-page instruction sheet. Alternative undercarriage gear assembly is suggested for types F6C-1, -2 and –3. Also included are front and side views for F6C-3 on a pair of floats.

Preparation and assembly

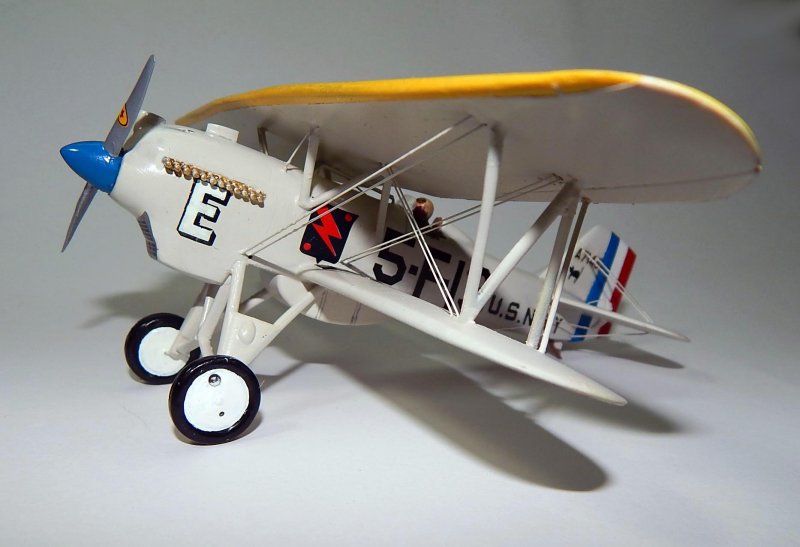

At an early stage one need to decide which type to build from the variants provided for which parts includes those for F6C-1,2,3 and float plane version. Vac-form parts are first cut and sanded to correct shape as applicable. Assembly is straight forward for those used to vac form type of models and care was particularly taken when opening up cockpit and the fuselage sides opening to take the exhaust stack.

The cockpit was detailed with a seat, control stick, rudder pedals and instrument panel. A headrest was added and made from a thin section cut from a round sprue. The lower wing halves are first glued and locating pegs are added at the root ends made from short length metal pieces. These will be inserted inside pre drilled holes at lower fuselage at a later stage. The same was repeated to tail planes providing a secure joint in each case. Interior metal structure was not viable to add since little could be seen from the cockpit opening, as this will be blanked with addition of a figure.

The metal exhaust stack that goes on each side of engine were cleaned and inserted in the slot prepared to take them. These were glued at a downward angle as viewed from the front. Interior was painted silver and fuselage halves were then closed. A tube-aiming site added to forward of windshield. Tailskid added from a measured length of metal wire. Short lengths of metal tubes were fitted to gun ports located on top of nose area.

Attention was turned to the undercarriage. The landing gear struts were partly provided from vac form parts and the central struts built and shaped from sprues. Wheel axle made out of a short piece of metal 3/16 inches in length. These were inserted to the end part of struts to take the wheels centre holes.

After lower wings were joined to the fuselage the outer wing struts position was marked on the lower wings. The distance in between the wings was measured and a distance piece made out of balsa was taped temporally to hold upper wing in place while the outer struts were added in place. With whole structure gaining strength then holes were drilled to take the twin parallel rigging. I used fine fishing line for rigging. It was repeated to the fin to tail planes rigging, and also to the control lines for elevators. With rigging complete the rigging holes were glued, filled op and sanded flat. Next stage was joining of gear struts to fuselage and adding the inner fuselage struts in their respective place and the central blank distance piece removed. Gear struts added and belly fuel tank glued in place.

Painting and finishing.

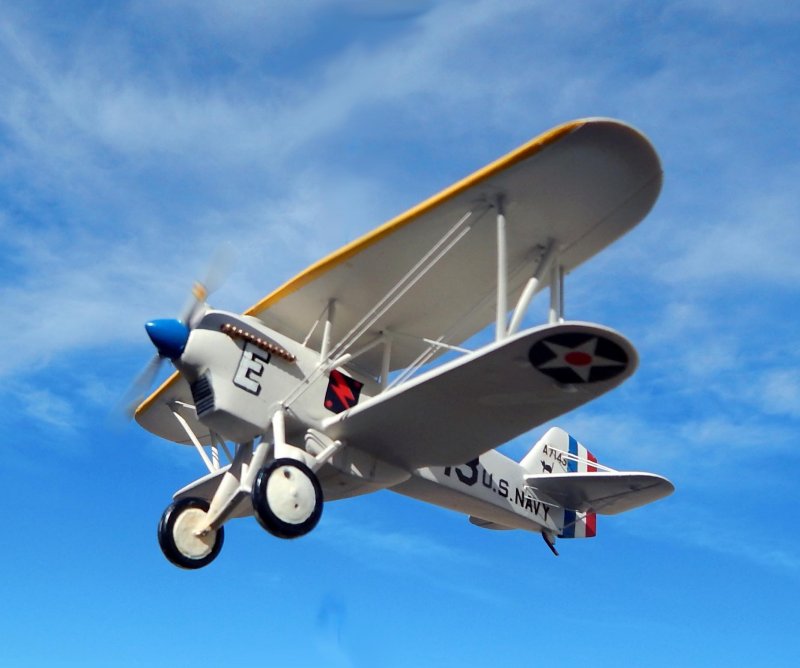

Rudder was sprayed red, white and blue and after drying this was masked. Cockpit opening also blanked so that the upper wing sprayed with white base coat followed by yellow. After paint dried top wing masked and the whole model was sprayed with a mix of light gray consisting of 60% gull and 40% white. Decals came from spares box to represent a land based Hawk of VF-5, 1927. The forward white letter shaded black and ‘alerted cat’ motif on tail fin were hand painted. Model was finally given an overall coat of Model Master satin lacquer.

Conclusion
This is a unique subject from the mid 20s era and a type unlikely to be seen at this scale by kit suppliers from mainstream section. Still I feel that no Navy model section is complete unless it has representation of 1920s era of planes like the Hawk P6. The kit can be made in many forms and is fully up to high standard linked with the name of Sierra.

Carmel J. Attard

Click on images below to see larger images



Photos and text © by Carmel J. Attard
