1/144 Trumpeter IL-78, Su-30 & Revell Rafale

Gallery Article by Murli Rajan on Jan 26 2017

India Republic Day





The build started with a inspiring picture of Indian Air Force Su-30MKI's being refuelled by an IAF IL-78MKI. I knew then I had to make a diorama of the same.

The search for appropriate kits lead to Trumpeters 1:144 IL-78 & Su30.  Both required a fair bit of modifications to bring it to Indian Air Force Spec.

Having picked the IL-78 kit from a online hobby shop.  The Su-30 kit was gifted to me by a dear friend Amrith.

Both the kits being relatively new releases from Trumpeter the details are decent and had very few fit issues.

Click on images below to see larger images

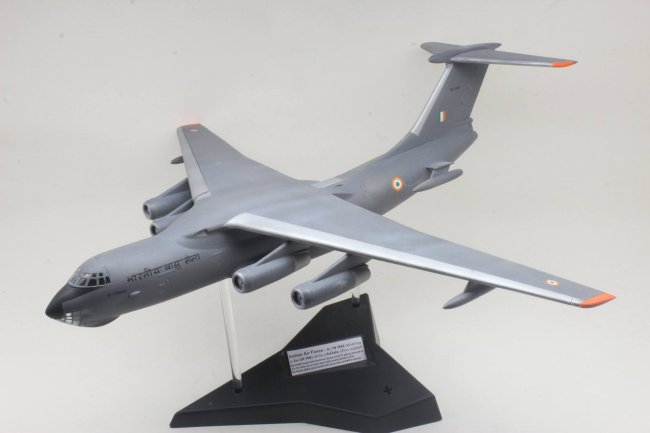

Let me start with the IL-78 the modifications included scratch building of the Israeli refuelling pods. I started with a thick sprue from another kit, attached it to a drill machine and shaped it down using files and sand paper.  The pylons used from the kit itself.  The refuelling pipe and drogue were scratch built using a electrical wire and conical shaped piece of plastic from the spares bin.

The Su-30 kit work began with the canards and shoulder shaped out of sheet polystyrene and loads of putty.  The refuelling probe fashioned out of a landing gear.

I also thought of adding a Brahmos Missile to the Su-30 this was made by using part of a Ballpoint pen refill.  Finds from 48 scale assorted Missile fins and missile head came from drop tank in 72 scale.

Decals were self made using a laser printer and decal sheet.  IAF roundels and fin flash are bright spark decals.

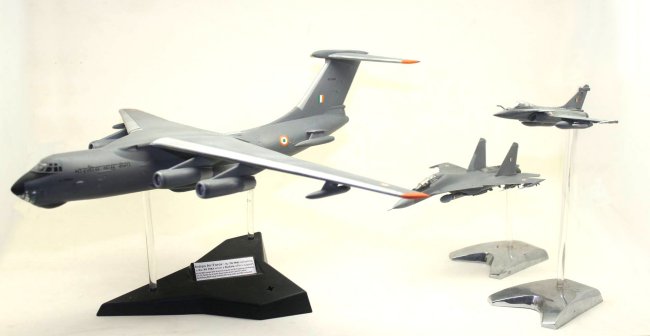

The third aircraft in the diorama is a Revell Rafale built OOB with just the IAF roundel and finflash added.

Here's wishing every one a Happy Indian Republic Day "Jai Hind"
.

Murli Rajan

Click on images below to see larger images



Photos and text by Murli Rajan
