1/32 Revell F-16C Fighting Falcon

as seen in the Falcon 4.0 flight sim

Gallery Article by Dennis Mathes on Oct 22 2015

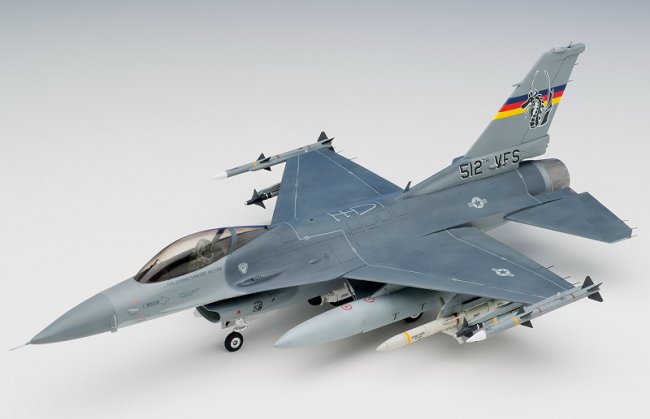

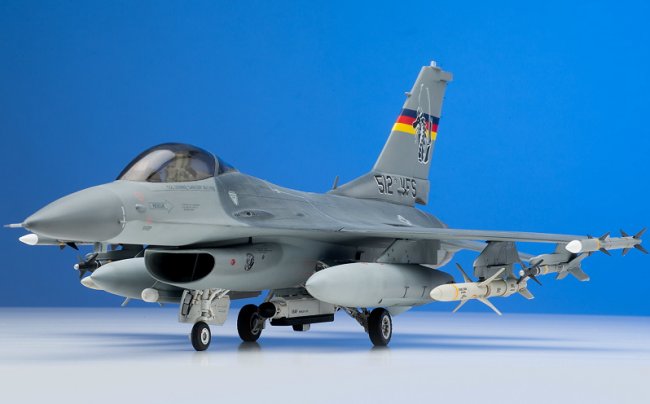

This model is the old 1/32 Revell kit of 1979 vintage. It was reissued several times and the latest issue came with markings of the 512th TFS and an added sprue to upgrade the kit to a F-16C.

The roots of this particular model go back to the year 1999. At that time I was heavily involved in the Falcon 4.0 flight sim with the 512th Virtual Fighter Squadron. Some friends decided to give this kit to me as a birthday present, as the jet in the sim had exactly the same paint scheme. There was no question that I was going to build the same jet as I was flying in the flight sim. This is why the finished model does not have a serial number, and it was never intended to represent the real-life jet 85-1412.

Click on images below to see larger images

After some research, the kit was started in 2004. At that time 1/32 weapon sets were not available, so I had to scratchbuild some parts of the aircraft and scavenge some of the ordnance to be correct for the aircraft I flew in the sim. The model was finally finished in February 2015

The modifications to the kit:

  • hand painted F-16C gauges and displays onto the kit's instrument panel

  • modified the 16S210 wingtip launchers into LAU-129s

  • made AIM-120s out of the kit's AIM-7s

  • modified the kit's station 4/6 pylons to represent the fueltank pylons

  • got some Hasegawa fuel tanks

  • bought a set of CAM Resin AGM-88s

  • added bulges with putty to the MLG doors

  • got a port HTS pod from the 1/32 Academy kit after that was released

  • added some detail to the inside of the exhaust nozzle

  • filled wrong detail on the upper fuselage and rescribed with correct panels

  • scratchbuilt pitot tube on the nose

  • modified the Trumpeter ECM pod and the kit's centerline tank pylon

  • scratchbuilt AOA sensors and standby pitot probe

  • added landing lights to the NLG door

  • applied markings on the tailbase with custom cut masks and black decals

  • added the pilot's name below the canopy

  • made static dischargers out of nylon bristles of a fingernail brush

Despite the modifications, this model was never considered to be a 100% accurate model, as this jet did not exist in real life. Instead, I took the chance to improve my skills and to try out different techniques. Considering the age of the kit, the modifications are a huge improvement and I am sure it can measure up with some F-16 models in that scale.

I'll leave you with some pictures during the construction of this model.

Have fun,

Dennis Mathes

Click on images below to see larger images



Photos and text by Dennis Mathes
