1/72 Contrail BAC TSR-2

by Karl W Branson

--------------------



Here is my 1/72 scale BAC TSR-2 model by Contrail. The TSR-2 first flew in September 1964 and was intended to replace the sub-sonic English Electric Canberra. However, despite showing superb potential the project was cancelled less than a year after the first flight.

I picked this model up at the 2004 East Midlands Model Expo (UK). We had been looking around most of the day, I had been looking for a TSR-2 for a while, and so far it had evaded me but this was to be my lucky day. Earlier that day I had purchased the 1/72 Heritage TSR-2; then I found my main prize - the superb 1/48 Dynavector TSR-2. At the end of the day we were making our way to the exit when my son James, who likes to have a look under the display tables at the models for sale, said “dad, that box says TSR-2 on it”, “where?” I said.

Under the table was a old brown box that had been forgotten, the legendary words TSR-2 were printed on the side on a strange salmon coloured label and a very flaky price tag was attached - £2.50gbp. After purchasing the last 2 TSR-2’s, both at around £50gbp I thought that there must be some mistake – but no! £2.50 it was. So Thanks to James ‘Eagle Eye’ Branson, I had my third model of this superb aircraft at a bargain price.

Click on images below to see larger images

When you open the box, you are presented with very basic vac form fuselage and wing sections and some internal parts. You also get a very basic injection moulded undercarriage and a PVC canopy. There are no openings in the fuselage and only rudimentary markings to show you where the cockpit, bomb bay and undercarriage doors should be. You are provided with some quite nice drawings of the TSR-2 done in 1/72 scale and on the reverse you get some b/w photos of the aircraft.

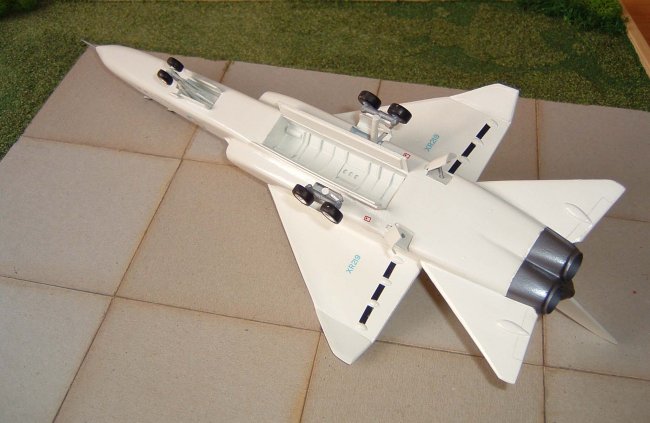

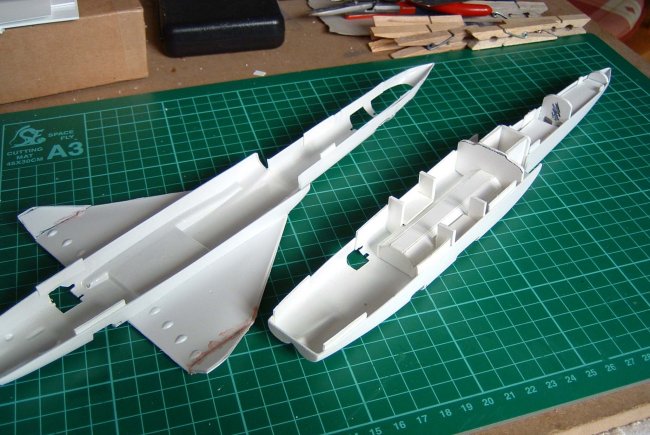

After detaching all of the parts from the vac form sheet and doing the usual hours of sanding and shaping to get them to align properly, I used the drawing to determine where all of the openings should be and I carefully cut them open with a sharp knife. I didn’t use the supplied internals as I wanted to add a bomb bay so everything inside was made from scratch using thick styrene sheet; bomb bay, gear bays and engine intakes were built up. There is also no cockpit supplied with the model whatsoever, so I had to scratch build this also, I used sheet styrene to build up the cockpit tub and instrument panels and some rod for the joystick. I borrowed two ejection seats from a 1/72 Tornado and altered them to make them look like TSR-2 originals. As for the rear of the aircraft, the supplied after burner cans resembled nothing like the business end of a Bristol-Siddely Olympus, so I substituted two short lengths of brass tube, I cut out the compressor detail from the kit engines and installed it on to the inside of the tube, you can’t really see it but its there. The wings and tail required some severe shaping on the leading and trailing edges to give them a decent shape. This was done using a Dremel and a rotary sanding bit, they were assembled using EMA plastic weld and CA in the stubborn bits. The nose also required a bit of reshaping as the angle was not quite right.

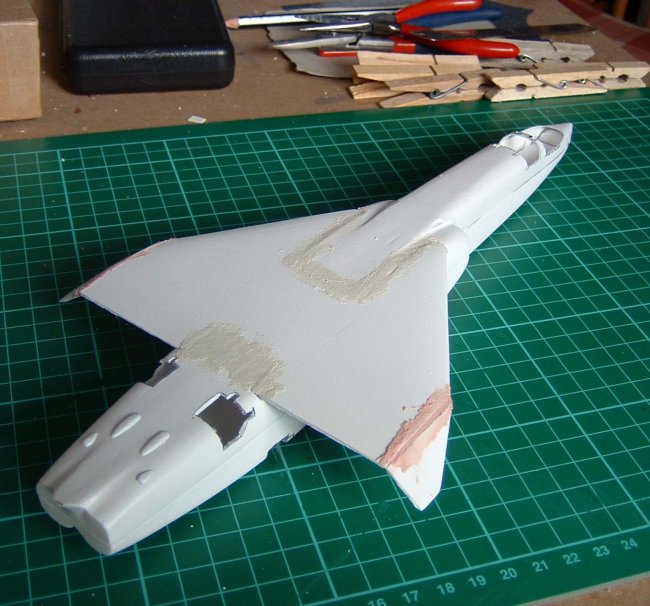

When the internal detailing was completed, next was the task of putting the sub assemblies together. I didn’t think that it would be a tail sitter but I still placed as much lead shot and epoxy resin in the nose as would fit. I made up some tabs and fitted them to the inside of the fuselage, and, after lots of dry runs, glued them together. Next up was the wings and tail section. The wing was difficult to attach as it did not match the upper fuselage shape at all, so some reworking was required using the Dremel. Lots of filling and sanding was now required to get everything to look right, this took days and days – I thought it would never be done!

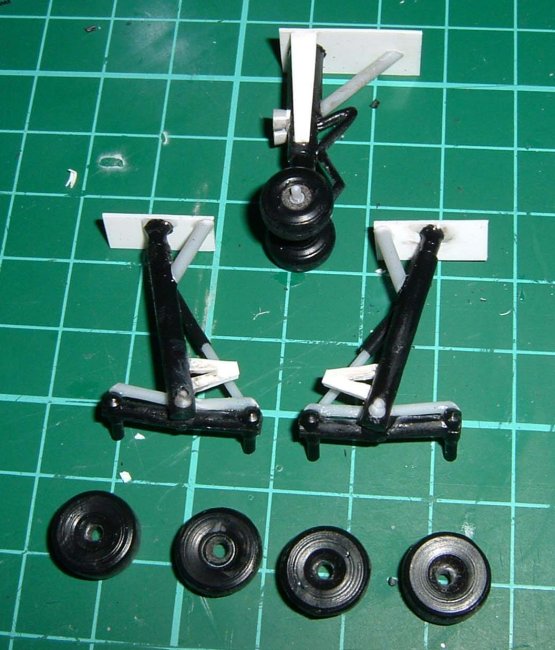

The last parts to be built were the landing gear. The gear that is supplied with the kit has almost no detail at all; it’s also the wrong shape. I used the basic struts as a starting point and scratch built the rest of it.

Every thing was now given a coat of Halfords auto white primer.

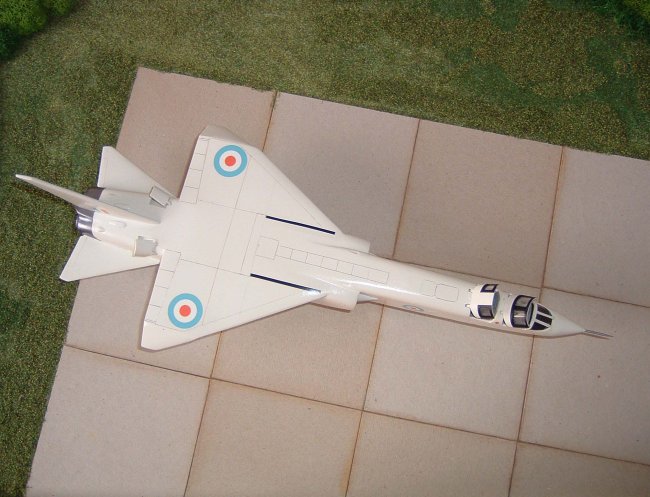

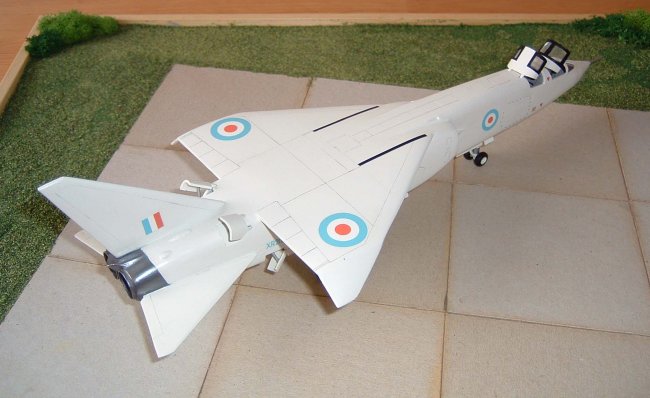

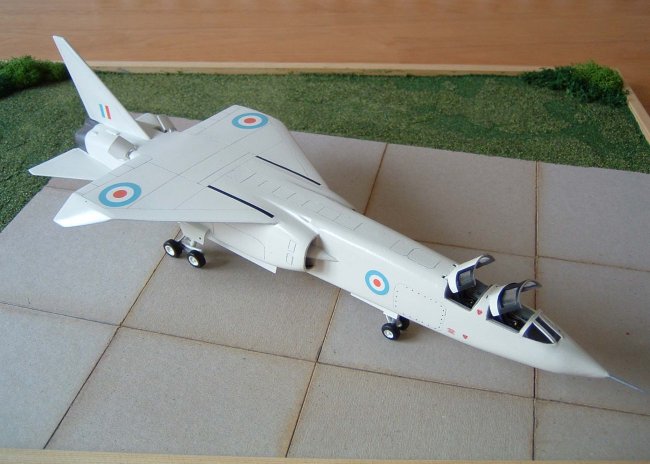

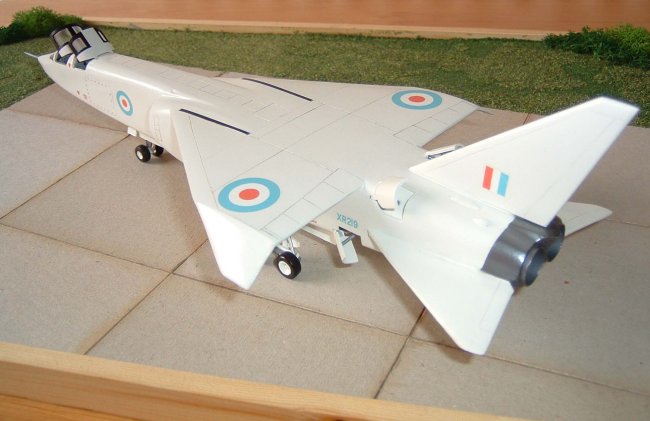

For an authentic TSR-2 there is only one colour that will do – White. This is one of a number of colours that strikes fear in to me (along with Silver). My main concern with white is if the paint that I use will go yellow. So for a number of years now I have been using auto spray paint, I use Halfords Ford Diamond white, it covers very well and does not discolour even after years; it’s also compatible with other Humbrol paints for detailing. The rear of the model was masked off and I airbrushed Humbrol #27003 buffable steel around the engine afterburners. The cockpit was done in grey and then the seats were added after painting. There were no panel lines on any of the parts, so I used the detailed drawings to mark some up on the fuselage and wings. I used a straight edge I made from cardboard (this will flex around the shapes of the fuselage and wing) and scored lightly through the paint. I went over the panel lines with a light pencil to make them stand out. Lastly, the cockpit windows were added (this was made more fun due to the fact that I managed to break the canopy frame and had to scratch build another one) and then the landing gear was installed.

A basic set decals is supplied - pale RAF roundels and markings for XR219 and XR220. I also used some of the stencil markings for ejection warning and such from the Tornado kit that had donated the ejection seats.

Click on images below to see larger images

I have really enjoyed building this model, it’s the first vac kit that I have built for years, I thought that I would do this one before I move on to the expensive Dynavector kit’s that I have now purchased. This model turned out to be mostly scratch built, but fortunately I enjoy building parts myself. Whilst scavenging through the Tornado model, I would sometimes find myself looking at the instrument panels and landing gear thinking ‘wow – look, the details already moulded in to this part!’ a standard injection kit will seem almost too easy to build after this! One thing that made me smile is the warning on the box “Not suitable for children – considerable modelling skills required” – I’ll second that!

I hope you enjoy my model.

Karl
