1/48 Hasegawa F-16N

NSAWC (Part 1)

by Patrick Spitaels on Dec 9 2003

--------------------

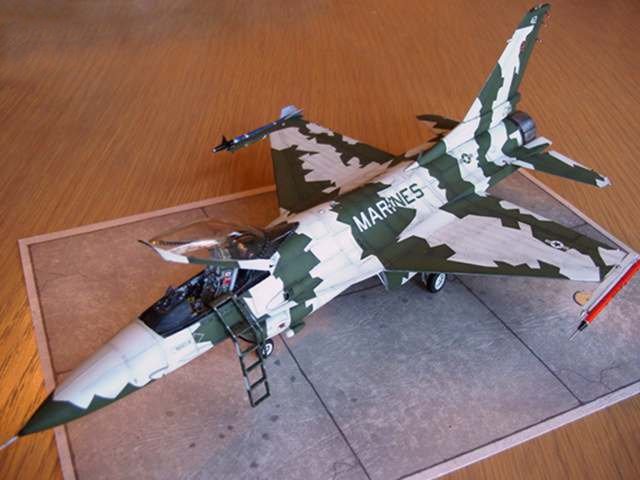

F 16 N from NSAWC in 1/48

My model is from Hasegawa, starting from a C box, added a Black Box cockpit from an A model as I didn't have anything else in stock...decals are from Twobobs sheet n 48-038 F-16N Old-School Aggressors.

As soon as Twobobs released their new decal sheet about those Falcons, I started my project!  I was checking what I had in stock, a Black Box cockpit for an A variant, where I would modify the instrument panel.

Click on images below to see larger images

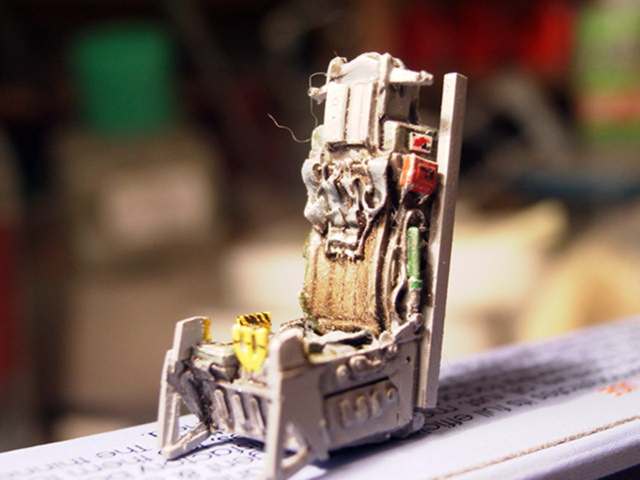

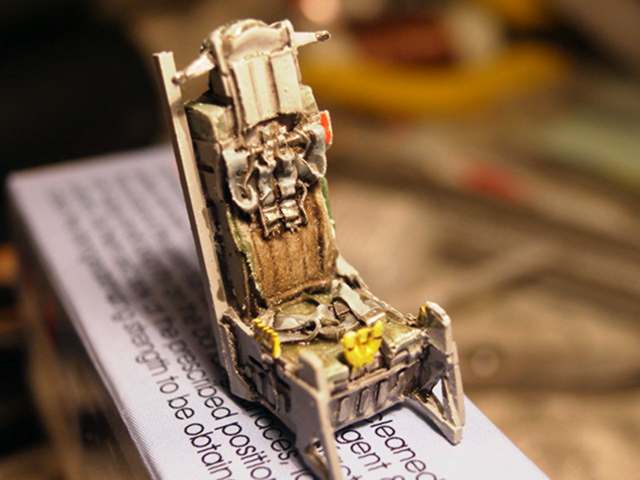

I paint the seat separately, always a thing I enjoy!

Click on images below to see larger images

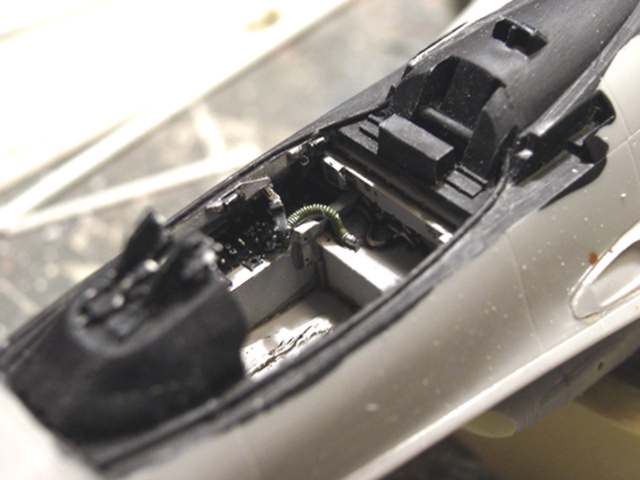

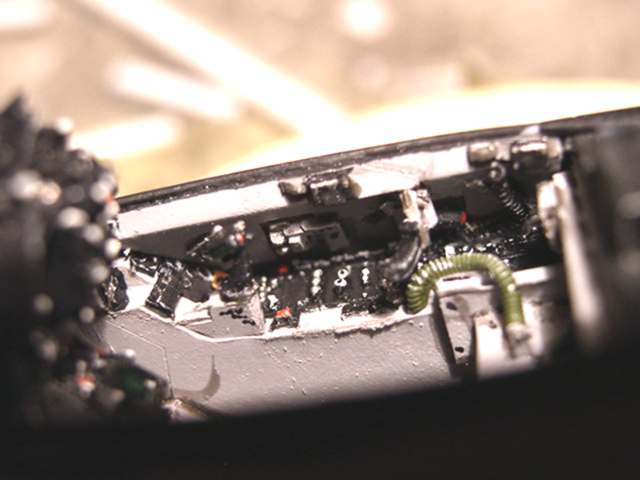

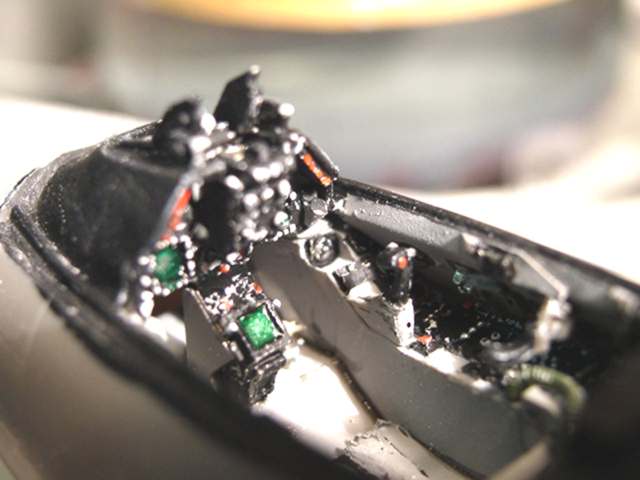

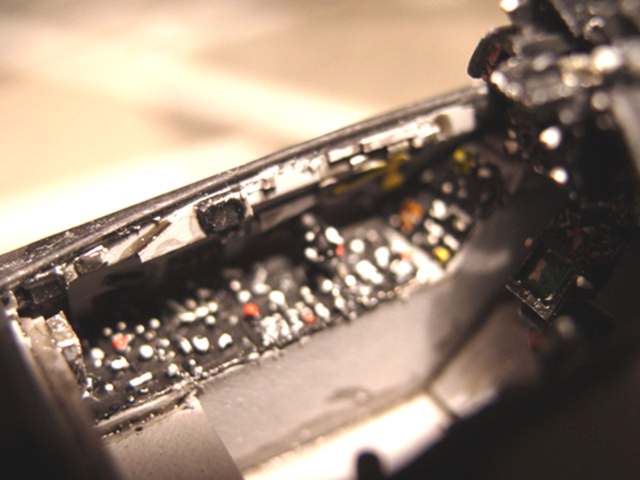

The making of this resin cockpit doesn't require much explanation, a careful painting job and dry fitting inside the fuselage; gives you good results.

For the paint, I used Testors paints and I weathered it with a light drybrushing of light grey / white and Tamiya smoke in each corner.

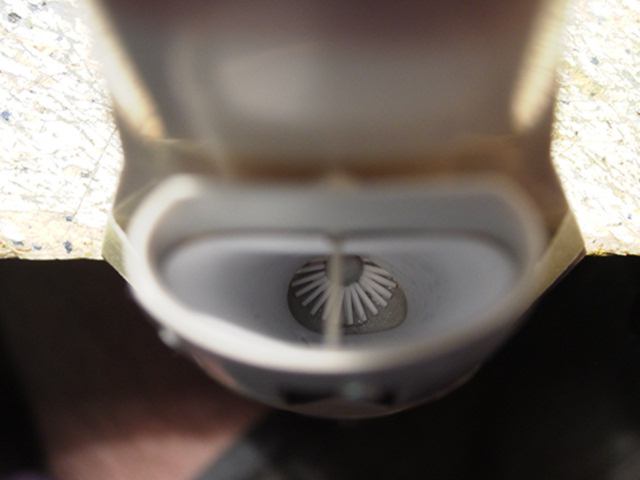

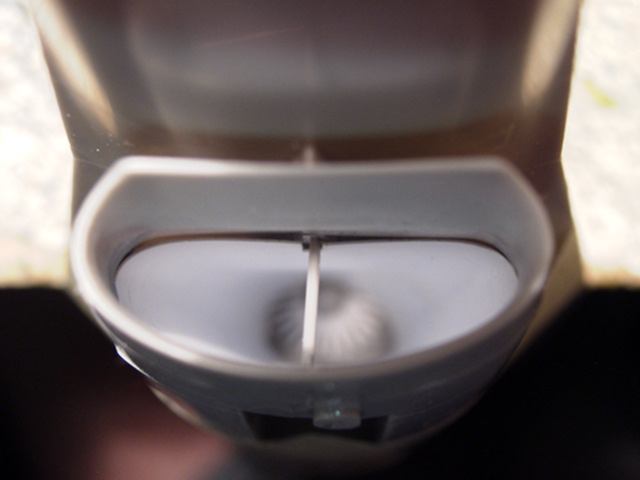

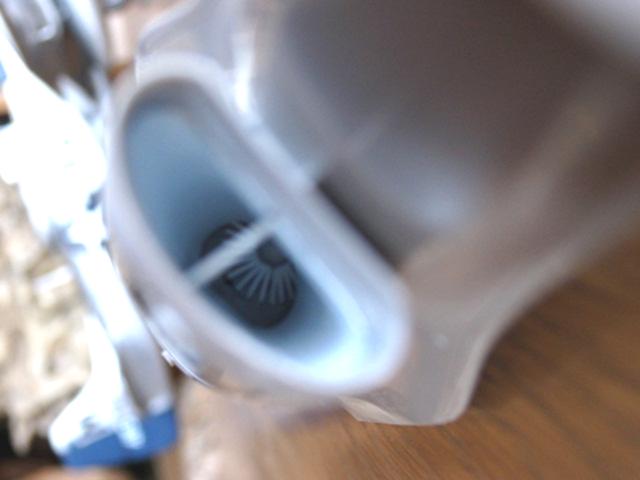

The next point was the air intake, this C model didn't have the Big Mouth intake, so I used the normal one which was thankfully provided in my box!  To make it look better I decided to modify the intake channel, adding a plasticard piece which I put in place as a channel, I also simulated the engine blades at the end of it.

Click on images below to see larger images

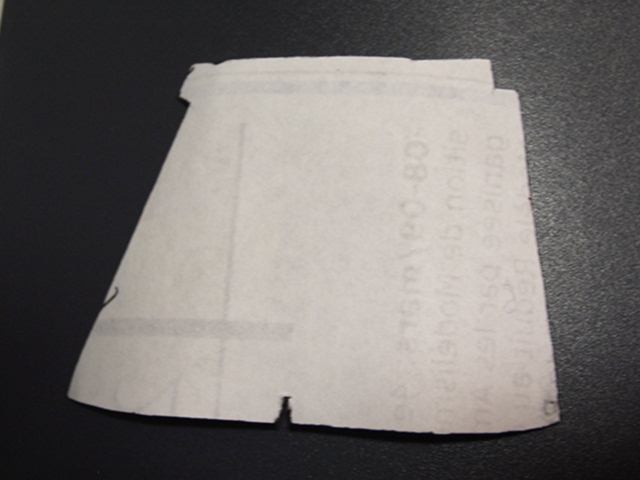

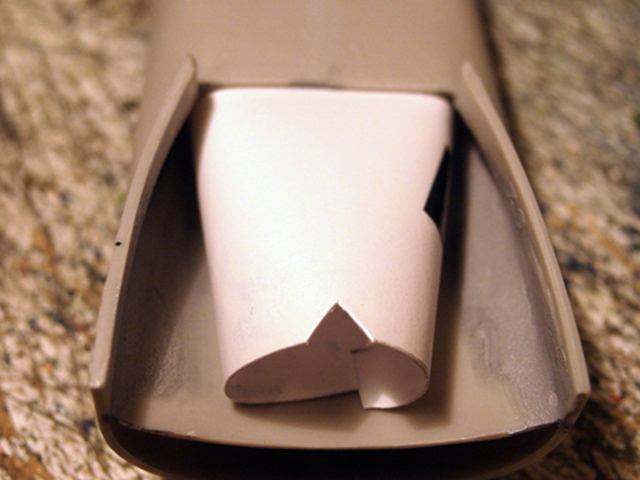

After that, some light putty is needed and it give a good result inside the intake!  I've added a pic showing the plasticard piece that I inserted.

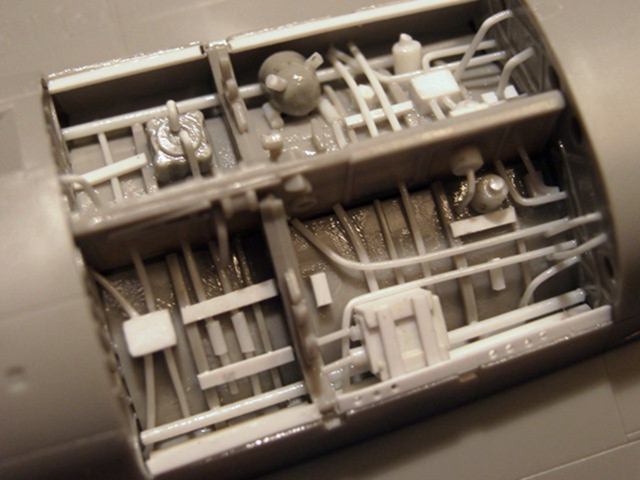

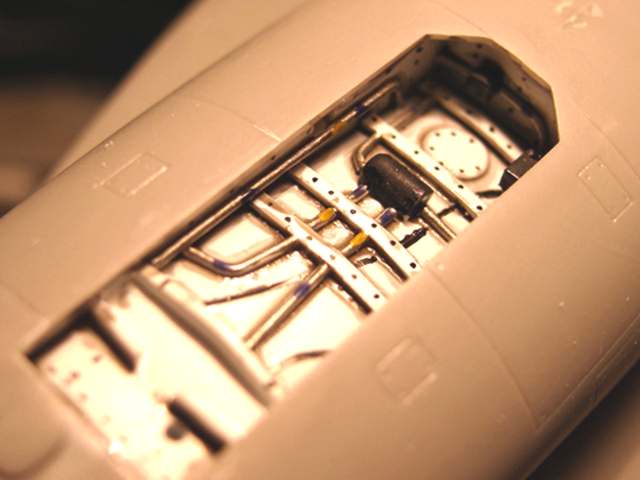

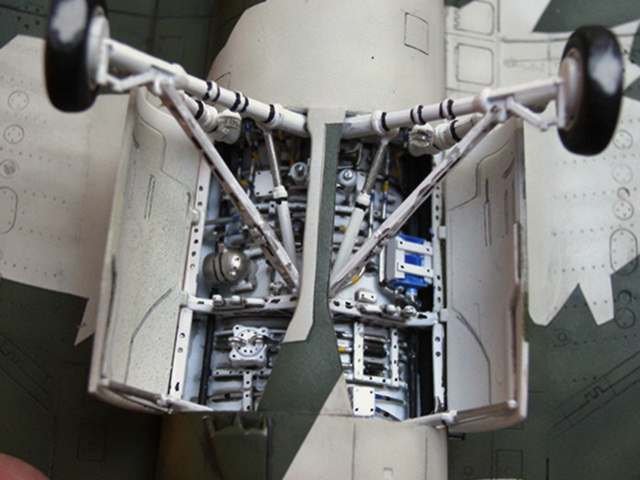

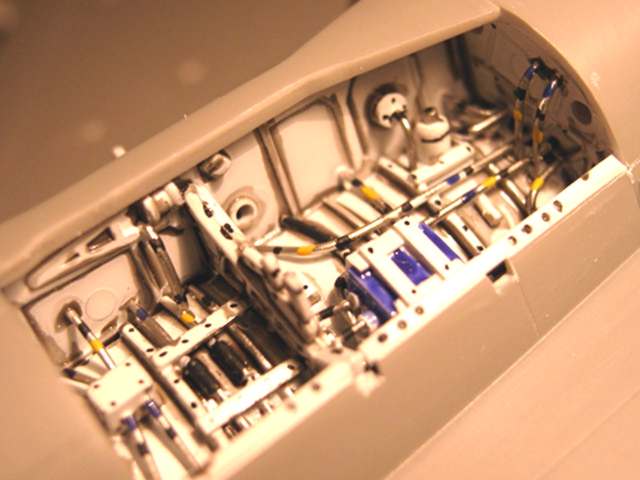

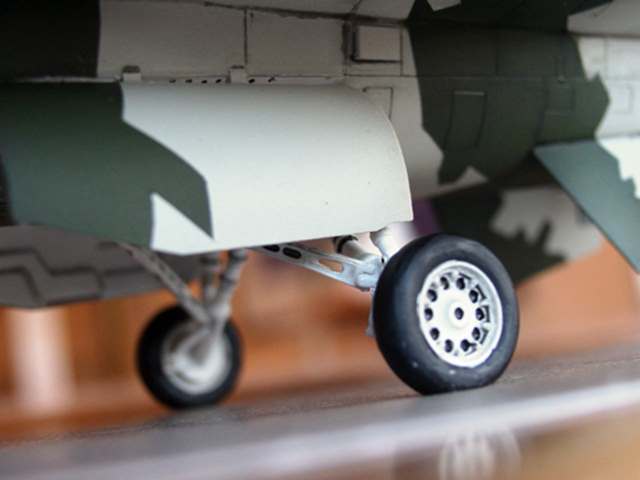

Ok, next point was the wheel wells, a light detailing inside, taking as reference the new DACO book about the FALCON.  As usually I used plasticard, I was just looking to have something "close" the real one....

Click on images below to see larger images

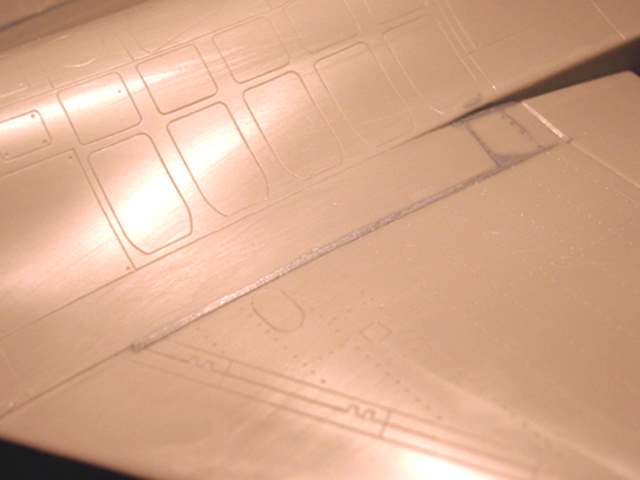

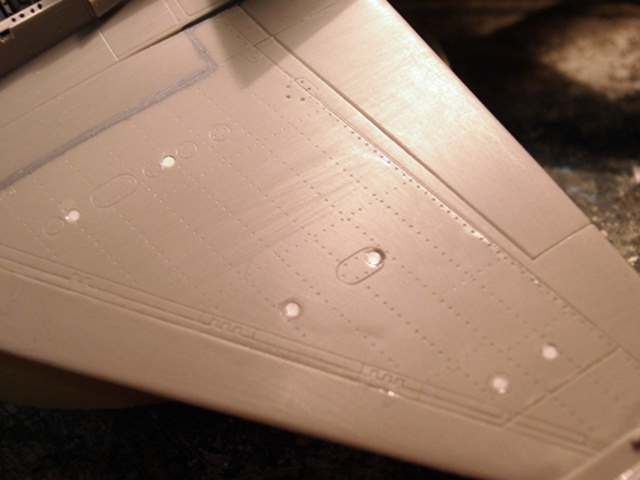

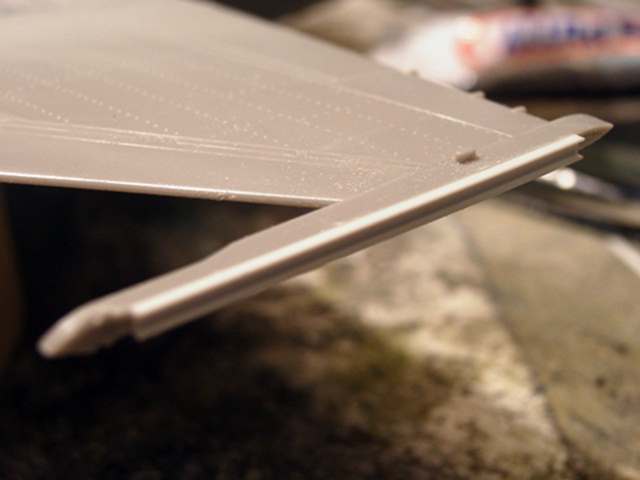

The job on the fuselage, with some added putty at the junction fuselage / wings, nothing overwhelming with that....closing the gap to all the pylons that are not used; with punched pieces of plasticard; and adding a U profile on the Sidewinder rails.

Click on images below to see larger images

Watch for Part 2 of my article.

Hope you enjoy it !

Patrick
