1/24 Airfix Spitfire Mk.Vb

by Phil Golding

--------------------



Airfix's Supermarine Spitfire has been around for over 30 years now, I remember my Father and I building one in the very early 70's, after it had been bought for my birthday.  For the time it was a prime example of the model manufacturer's art; detailed engine, cockpit, opening gun bays, working undercarriage etc....and it was BIG!  The other kids all had 1/72nd models.  I ran round with a Spitfire THREE TIMES BIGGER.  Over time the undercarriage broke, the canopy and gun covers got lost and it ended up in the bin.

Jump forward 30 years or so...I built the same kit again but, now it seemed dated and old, especially when compared with the Japanese offerings.  When Airfix announced they were upgrading this old classic to a Vb, I decided to have one as a 42nd birthday present.

The HUGE box (you'll never sneak this one past the wife) contains all the sprues for the Mk.I, along with all the parts you'll need to build one of four (that's right, four) different Vb versions...these are:-

1) AB502, IR-G,  I.R.Gleed's machine of 222 wing, Tunisia 1943.  Complete with Aboukir filter, clipped wings, and in mid stone/dark earth/azure blue colours.

2) ER120, VF-D, 5th fighter Squadron, 52nd Fighter group, USAAF, N. Africa, 1943.  This is again mid stone/dark earth/azure blue, but with standard wingtips, and that horrible Vokes filter.

3) BM144, RF-D, Sqn. Ldr. Jan Zumbach, No.303 (Polish) Fighter Sqn., 1942.  This is a non-clipped machine in ocean grey/dark green/medium sea grey.

4)  W3834, YO-Q, 'Corps of Imperial Frontiersmen', No.401 Sqn. RCAF, 1943.  This is a clipped Vb, again in green and two greys.

I decided to do the latter machine, as I've always liked the aggressive look of the 'clipped' Spitfire, along with the grey/grey/green camouflage.

Research was my first priority...I've got a few books on the Spitfire but, as I wanted to add a little extra to this kit, I begged, stole or borrowed the following:- 'Famous Aircraft, their history and how to model them', No.1.  Patrick Stephens Ltd/Airfix.  'The Spitfire V Manual', RAF Museum Series.  I already had the 'Modellers Datafile' on the Merlin-engined marks.

After browsing these books heavily, I decided to open the Radio Bay, Battery hatch, cannon and gun bays, and to detail them all.  I also decided to do as much as possible to the cockpit so, ten minutes on the internet had Waldron's cockpit placards, details and seat belt buckles winging their way to me from Hannants.

Click on images below to see larger images

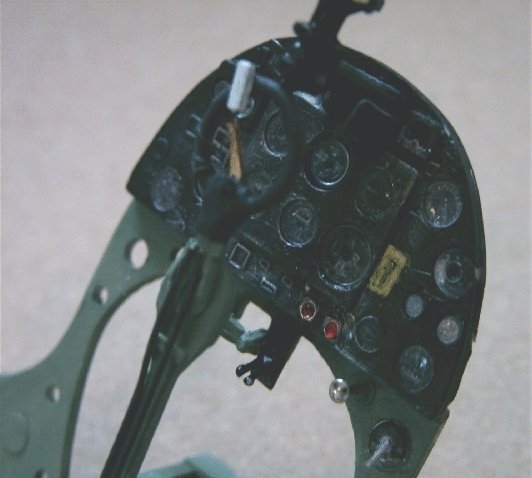

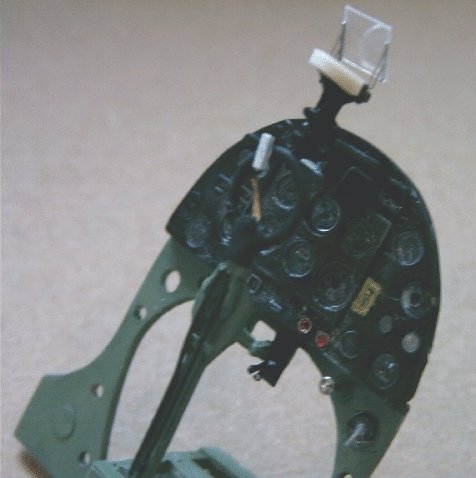

The first order of business was the cockpit.  The instrument panel was built fairly much according to instructions, except each of the dials had a disc of clear acetate added to simulate glass.  Much better I think.

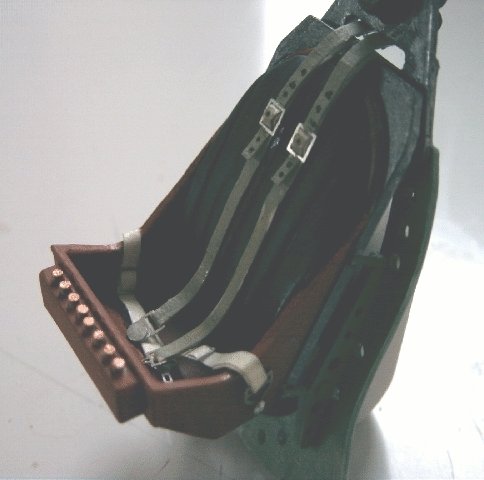

The control column was corrected, by removing the grip completely (apart from the brake lever) and adding a new one from copper wire, along with the correct shaped 'rocker' gun button (top for guns, bottom for cannon, middle for both, I think).  The fuel cocks were added under the panel, to the right of the compass.  And a dressmaking pin was used for the priming pump handle.  Waldron include a proper flap lever, along with the voltmeter bezel.  The gunsight was modified.  The kit glass being removed and Waldron's frame being used with a piece of acetate for the reflector glass.  A piece of wire was used to represent the power cable to the gunsight.  The seat was painted a brick red colour ( I believe they were Bakelite) and a back cushion was added from Milliput.  The holes along the front of the seat are, apparently, for flare cartridges for a Very pistol.  Small lengths of plastic rod were inserted, then painted to show these.  Waldron's buckles were used to assemble the Sutton harness, using masking tape (which has a slight grain) to represent the webbing.  When painted Tamiya Deck Tan, and buckle holes added, they look quite good.

Click on images below to see larger images

The tops of the rudder pedals were removed and 'straps' added from thin plasticard.  The actuating rods were also altered to show the 'star wheels' used for altering the reach of the pedals.  The rods were also extended rearwards.

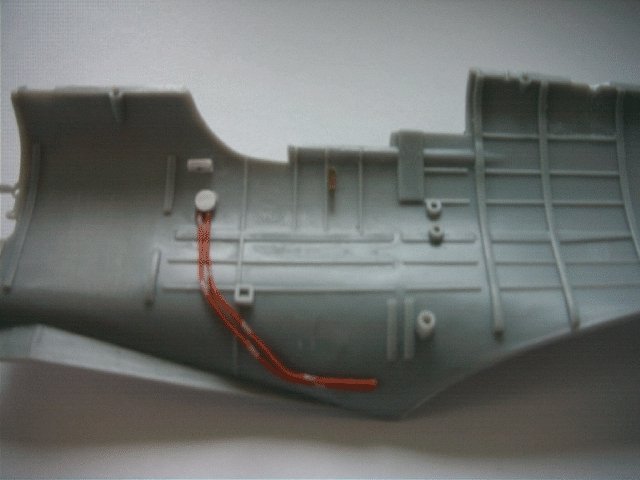

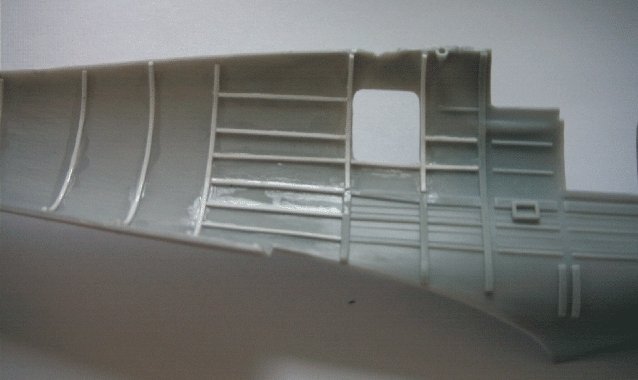

The fuselage had all its ribs, frames, and stringers added (even, it later turned out, where you can't see them).

Click on images below to see larger images

Waldron parts were used to build the throttle quadrant (18 pieces!) R3002 box and chassis control along with copper wire and bits of card etc. to depict wiring, hydraulic lines and the like.  A Co2 bottle was made from sprue, and a valve made using my punch & die set.  This was for the emergency u/c lowering equipment, and is just to the right of the seat (its difficult to see).  A map case was made for the port sidewall (I stole some of my Wife's 1/35 maps for it).  The ident light controller, rack for the spare gunsight bulbs and clip for the oxygen hose were made and added to the starboard (I even made the bulbs!).

Click on images below to see larger images

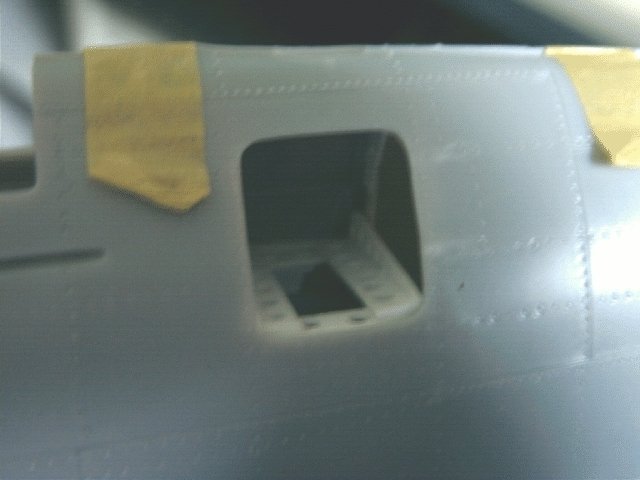

The radio and battery hatches were removed by chain drilling, then cutting.  Then the edges of the openings were thinned to something resembling scale thickness.  Hatch covers were made from thin plasticard, rolled over a dowel to curve them, then ribs added inside.  The radio rack was scratch built, along with the radio itself (its probably not accurate, I couldn't get a photo of the radio for comparison) and a couple of junction boxes and the oxygen economiser added behind the seat.  You'll also need to alter the voltage regulator behind the seat headrest, as its totally wrong for a Mk.V.  After coats of Humbrol 78, 85, 53 and various others, the fuselage interior and 'Office' were looking the business.  I'd discovered earlier that it is possible to fit the engine with the fuselage closed up so, I glued up the fuselage at this stage, adding the tailwheel, battery and various control wires etc.

The engine turned out to be a real pain in the proverbial.  I'd originally intended to do a full detailing job on it but, had such problems with fit and clearances that, in the end I fixed the cowlings in place, and you can't see it.

Turning to the wings...one of the problems with this kit (along with the 109) is the lack of 'closed' wheel wells.  You can see right into the wing.  After cutting out the wing to accept the new bulges for the cannon, ammo drums etc. (the panels to cut are marked on the inside of the wing) I discovered the fit of the cannon ammo drums is so terrible that the covers won't fit, even after I tried thinning them down.  Another idea fell by the wayside, as I fixed the cannon covers in place.  You won't see inside mine.  I did, however, manage to box in the wheel wells.  Be careful cutting off the wing tips.  Airfix give good instructions, but I was not paying attention.  I didn't follow the old adage 'Measure twice, cut once'.  A bit of filler sorted out the problem.  Watch out for the wing strakes too, they're far too big and would probably be better replaced with some plastic strip.  Also, my chosen subject (W3834) didn't have them fitted, it later turned out.  By the time I found out, she was finished and I wasn't going to correct and respray her.

The wing to fuselage joint needed a little filler but, considering the age of the kit, no more than I expected. The windscreen was fitted and masked at this stage.  The externally armoured version  (option 3) fits well.  The internally armoured version (options 1, 2 & 4) is about 2.5mm too wide for the fuselage.  I had to carefully squeeze the sides together and wait while the superglue set (thank god for accelerator).

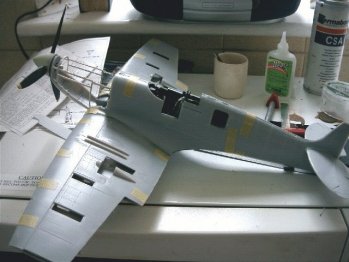

When all was assembled and masked a coat of grey acrylic auto primer was applied and any last minute filling and sanding done, and the hatch covers were added.  I masked the apertures with wet toilet tissue and primed her in my garage, hanging her from a beam.

I allow 24 hours between each coat of paint before applying the next so, between coats, I built the prop & spinner (no positive location for the blades, and the blade shape is wrong, being more suited to a later two-speed, two-stage Merlin).  The exhaust stacks (correct 'fishtail' pattern, I think, complete with intensifier tube for gun heating).  And other bits and pieces, such as the entry door (adding a crowbar and latch), wheels etc.

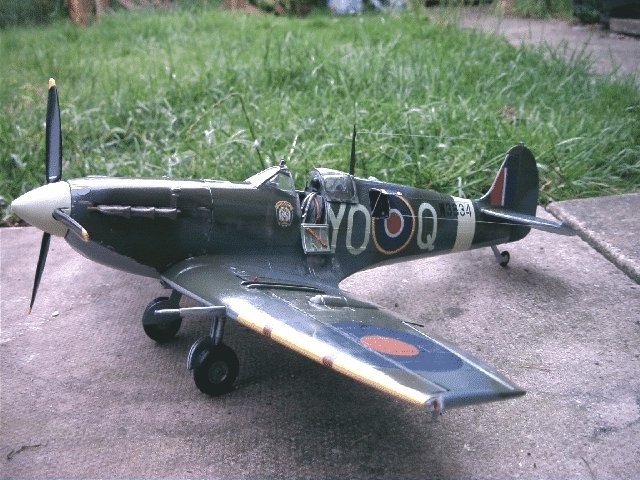

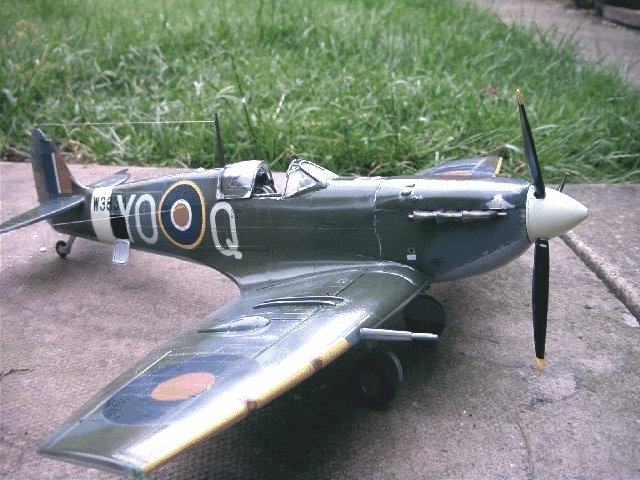

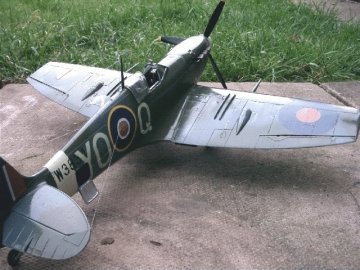

When all the paint had hardened, a couple of coats of Kleer (future) were applied and the decalling was started.  Apart from having to cut the decals to fit the radio hatch there were no major problems.  You'll have to paint the Sky band around the rear fuselage...Airfix don't supply it as a decal.  The horrible blobs that are supposed to be the 'wheel down' indicator pins were replaced with thin plastic rod, painted red.  The entire plane was then matted down with Humbrol Matte Cote, and a little subtle weathering applied with pastels.

Click on images below to see larger images

A nice ARC'er sent me a photo of this 'plane as flown by 'Ibby' Ibbotson, which shows it far more weathered than I have done.  It has also been pointed out to me that the IFF aerials and the main aerial were not used by 1943, and should be absen.  Ah, well!  We live and learn.

Hope you like it, and respect to all my Canadian friends...this one's for you.

Phil

Photos and text b Phil Golding
