1/48 Hasegawa F-104G Part 1

in Belgium markings

by Patrick Spitaels

--------------------





F-104 G gunbay

The box:

Here is the HASEGAWA model of the F 104 G , maybe you remembered my previous Zipper, a C model, but when I saw the new box, the G model, during a model show at Ransart ( Belgium ), I knew what I want to do with it!!!!

This model depicts a bird from the Tiger Sqn in Belgium, from 10 Wing, based at Kleine Brogel Air Base.

What I've used:

Well, the cockpit is from Cutting Edge, detail set from Cutting Edge, underwing tanks from Black Box, Wheels wells from Aires, exhaust from Aires too, decals are from Daco, paints is a mix of Tamiya; Testor and Daco, the rest is scratchbuilt!

The Idea:

  Well, my idea was not an original one, a friend from the Amay Model Club; Patrick Bouclan, made it before, and in 1/32 scale!! This idea was a diorama of the replacement of the ejection seat, with the cockpit hatch opened and the seat placed outside.  I also planned to opened the electronics bay, gun bay and engine bay.  So, let's get started!
Click on small  image below to see larger image

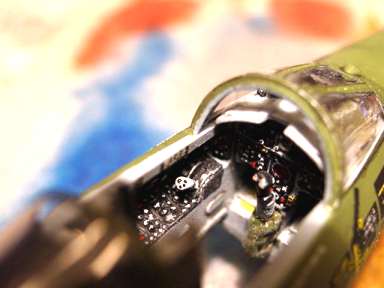

 The cockpit:

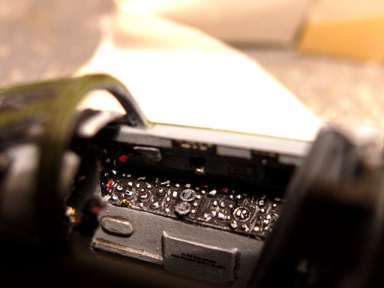

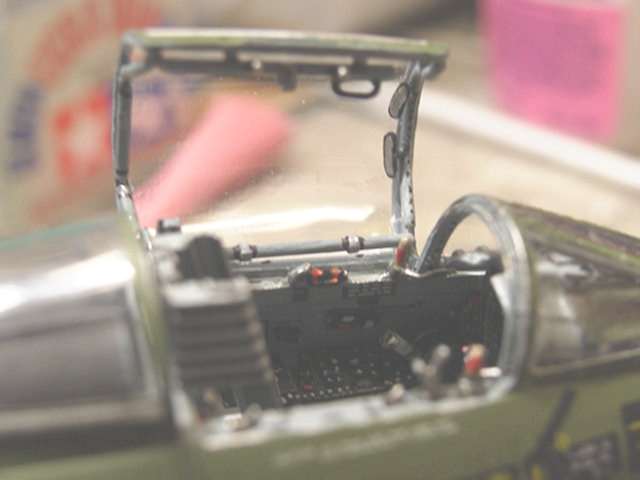

The first thing I could say is the Cutting Edge did a wonderful job on this one, the seat was so detailed that it was not difficult to show it alone and outside the bird......you just need a good paint  job. For the instrument panel I decided to sand the back and put the sheet of paper behind. Well, looked good! A small drop of FUTURE on each instrument and it's done.
Click on small  images below to see larger images

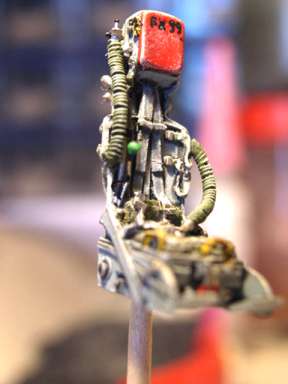

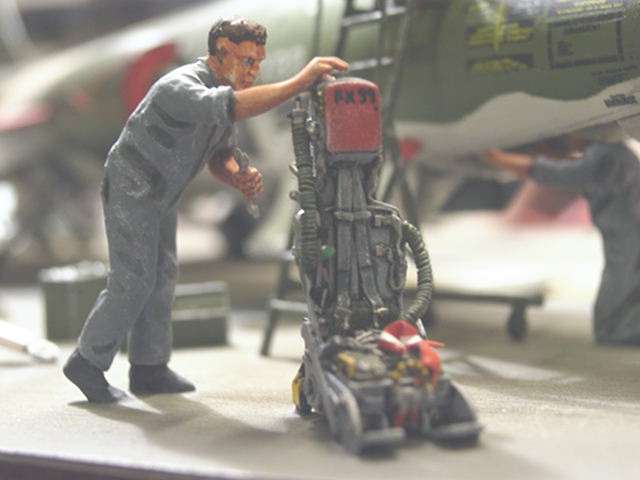

About the seat, I made the oxygen hose as wrapping a wire on a needle and gluing it. I also added some wiring to the back of the cockpit. The bottom of the cockpit was opened, it have the look of the cockpit hatch but I didn't use it.

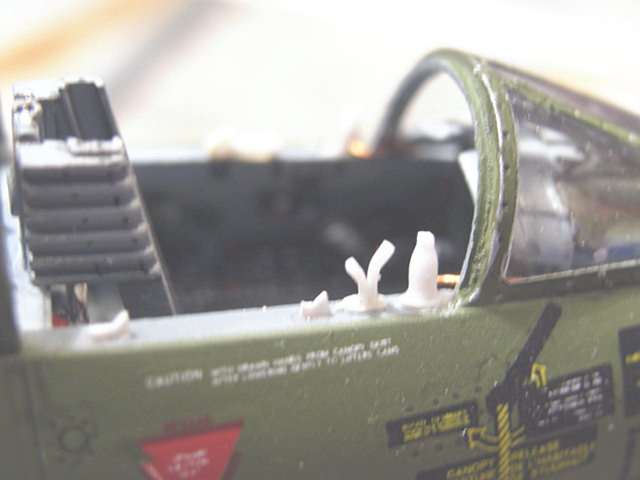

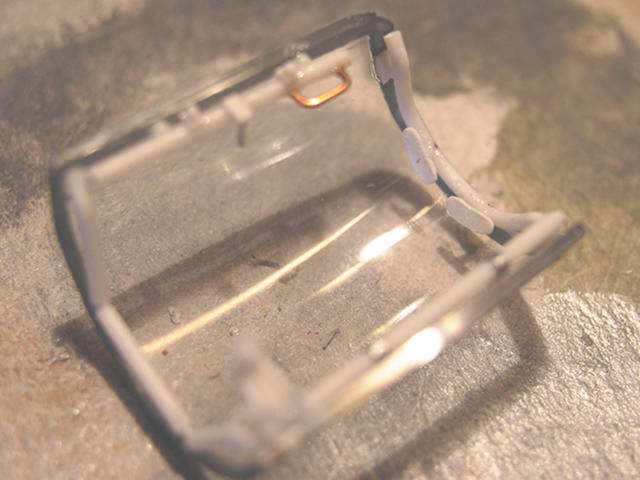

All the defog system around the canopy was made from plastic tubes, mirrors from plasticard too. You can find detail shots on the walk around I made on the " restoration " of the FX 47, at Beauvechain Air Base, the job is made by the guys of the 1 WHC and Air Models Club .

Click on small  images below to see larger images

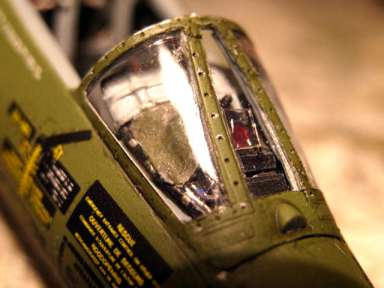

The inside of the front canopy saw some plasticard added inside, to give some relief.

Electronics bay:
Click on small  images below to see larger images

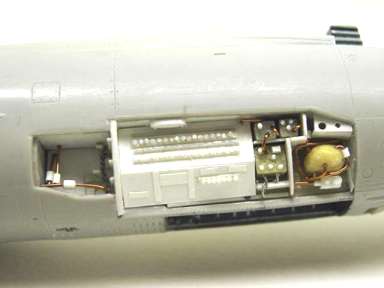

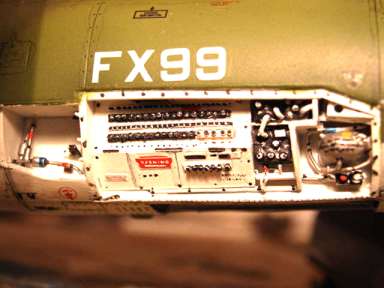

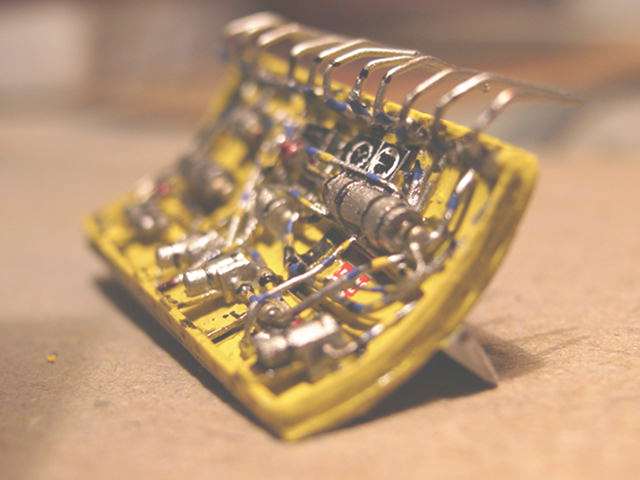

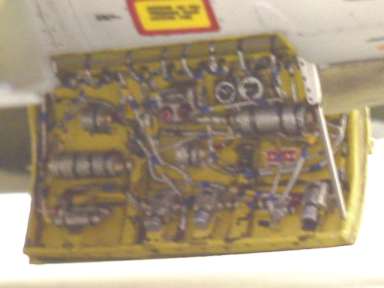

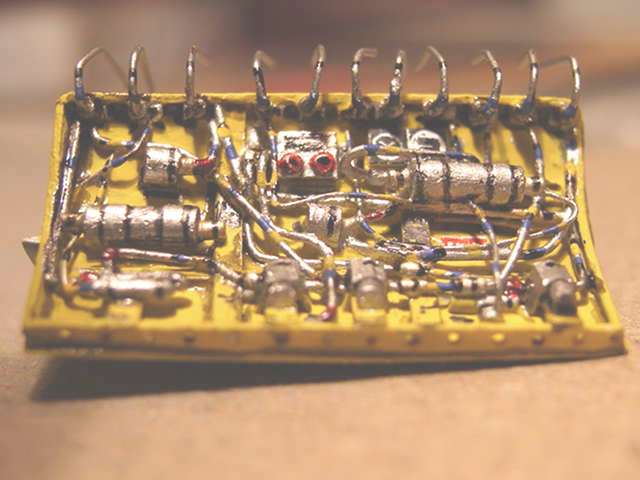

Made from scratch, in plasticard.  The references are the pics found in the  LOCK ON from VERLINDEN. The oxygen bottle is a resin block I carved.  The panel was made by using the one from the CE set, sanding it , adding plasticard and white glue around. Why the white glue....well, you could see that all those panels have a special face, with round border, it was pretty difficult to duplicate that with a plasticard.

Click on small  images below to see larger images

RAT bay:

Click on small  images below to see larger images

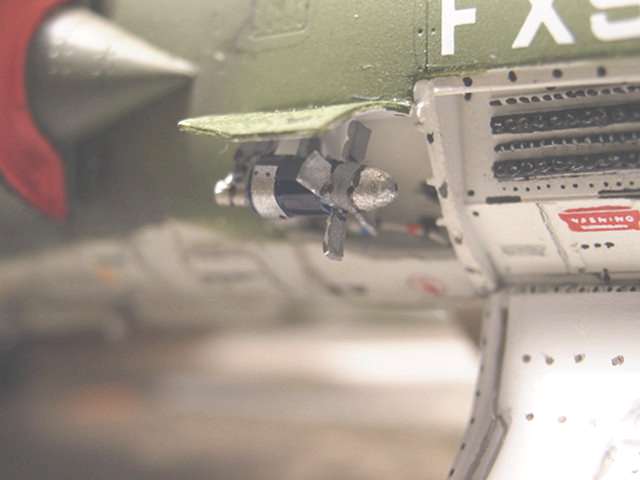

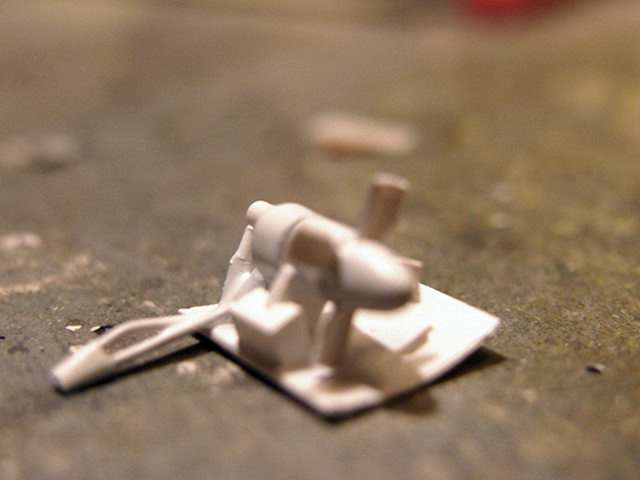

Made from scratch, a guy told me that it was not possible that this hatch was opened like this when on the ground.....ok ok, but it looks great no?

Gun bay:

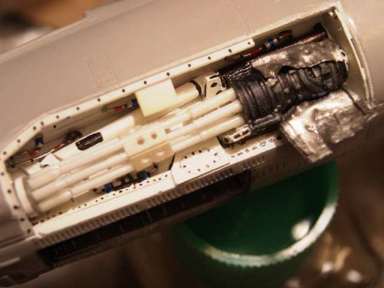

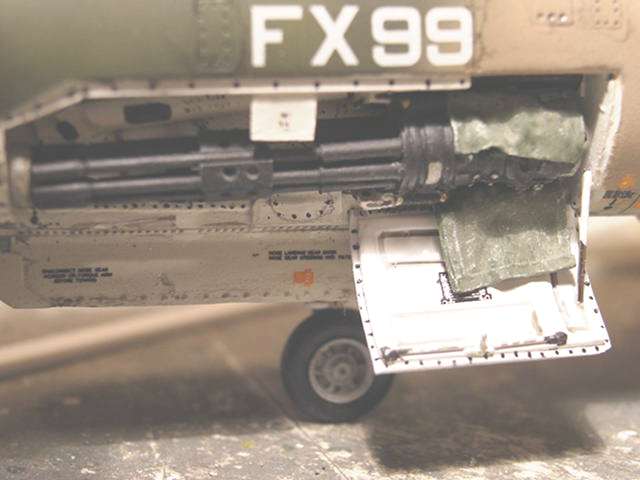

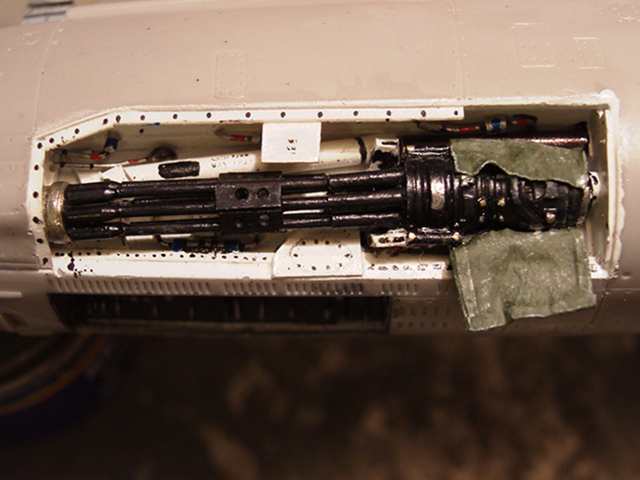

Scratched too, plasticard was used for the panels, the gun was a VERLINDEN one, the tubes are in plastic.

Patrick
