These photos were taken of a French navy fighter/attack Dassault Super
Etendard.
I took these pictures almost ten years ago at BAN Landivisiau (BAN means
NAS in French) in north west of Britain. This airplane is a
"simple" Super Etendard. Nowadays, all aircraft are SEM (= Super
Etendard Modernisé, modernized) and the cockpit layout is different with
Anemone radar. So, here we have a Super Etendard with Agave radar.
The ejection seat is a Martin Baker CM 6.
Emmanuel Banon
Click on
images below to see larger images

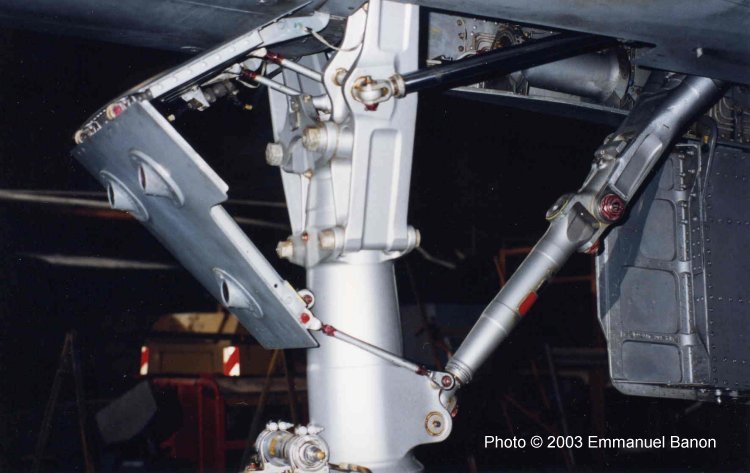

nose
landing gear
nose
landing gear
nose
landing gear bay
the control stick and
front instrument panel
Click on
images below to see larger images
left side of front panel
right side of the panel
with the Agave radar screen
the control stick and
front instrument panel
left
side console with throttle (the pink cylinder). The black switch at the
top of the throttle is for the airbrakes
Click on
images below to see larger images
the
right side console and the black lower cushion of the seat.
headrest
of the CM6 ejection seat and the red savety pin flags
headrest
of the CM6 ejection seat and the red safety pin flags
lower
cushion of the seat
Click on
images below to see larger images
the side
of the left air intake there are small control access panels
