Walkaround #418

Douglas AD4NA Skyraider

Reference photos by Andrew J. Worstencroft

AD4NA Skyraider





Photos were taken at The Imperial War Museum @ Duxford In Cambridgeshire, England.  The aircraft is a Douglas AD4NA Skyraider, which is a flying example, but due to mechanical troubles wasn't flying @ this years "Flying Legends" airshow, alas the misfortune allowed me to get some good close ups of the HUGE Wright Cyclone 3350 engine while it was opened up for repairs.

Andrew J. Worstencroft

Click on images below to see larger images

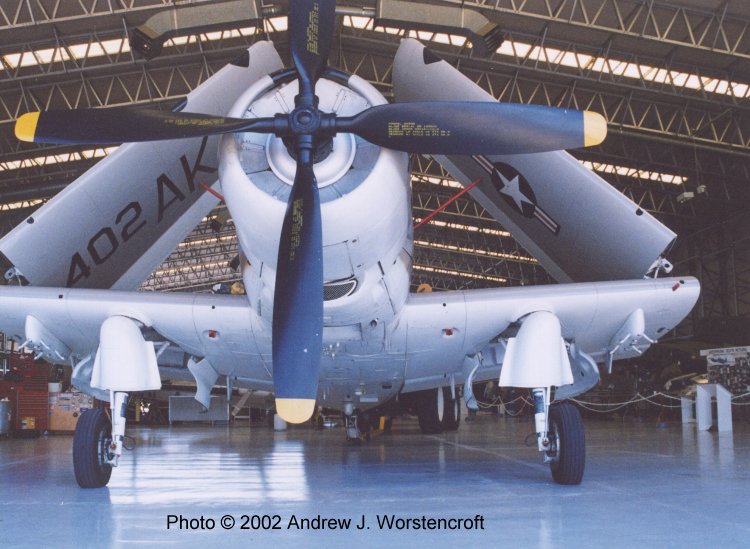

AD4NA Skyraider

LH side
tail
RH gear attachment



Click on images below to see larger images

Rh main gear

LH Gear well
Rh Wheel detail
Tail wheel



Click on images below to see larger images

LH wingfold

Prop
lower engine detail
Wright Cyclone 3350-26WA LH side



Click on images below to see larger images

Wright Cyclone 3350-26WA LH side

R3350-26wa & accessory bay LHS
R3350 Acessory bay LHS
R3350-26wa LHS



Click on images below to see larger images

R3350 Accessory bay RHS

R3350 exhaust stacks RHS

R3350 RHS
RH cowling detail



Photos and text by Andrew J. Worstencroft
