1/48 Italeri Fiat CR42

by Elia Pagani

--------------------



This is my first article on ARC and I selected my latest completed model, that is the Fiat CR42 in 1/48 from Italeri.  There was not a lot a choice in the past when building one of the most famous Italian fighters of  WWII in my favourite scale and I appreciated that Italeri finally developed this kit that is the best offer today available in terms of cost/quality ratio.  The kit dimensions are accurate, panel lines are recessed (not a lot of panels in this biplane, actually), just the typical shape of the fabrics of the wing is too evident, but with some sanding the effect can be smoothed.  Unfortunately the only problem to me is that the kit represents the late CR42 serie with the last type of squared carburetor air intake with sand filter and this is good for the versions used by the Luftwaffe (the actual version of the kit) or for an Italian assault version, but not for the version that I decided to build that is an early fighter version (what else?) deployed in North Africa during the fall of 1940.

Luckily, the kit provides several spare parts for different options: two type of spinner, normal and "cut" type of wheels covers, etc, so I had just to build from scratch the std carburetor air intake because all the rest I need was already available from the box.

Construction

The cockpit from the kit is quite detailed, but I preferred to replace the cockpit walls showing the steel tubular structure just impressed in relief, by a brand new tubular structure made from 0.5mm plastic rod that has been fitted to what has been saved of the kit cockpit: the front structure with the dashboard support and part of the floor with the seat. A significant detailing improvement has been achieved by using the Eduard Zoom set FE332 to details the two instrument panels and the two control consoles at the sides of the seat.  The typical Italian safety belts are made from photoeched, as well, though they are missing from the photographs. Other kit details of the cockpit that are not enough accurate like the oxygen and the air compress bottles, the S.Giorgio gunsight and the compass have been made from scratch.  The cockpit has been painted in light grey (Humbrol 64).

Click on images below to see larger images







The kit provides a fine replica of the Fiat A74RC38 radial engine, made of five separate parts: leaving the cover panels in open position it would require more detailing, so I preferred to have the NACA with all the panels fixed and just adding the spark plug wiring at the top of the cylinder and drilled out the exhaust terminals to give them a more realistic look.  The engine cylinders have been painted in black with the base cover in light grey and the exhausts terminal in metallic bronze.  I also did some drybrushing in silver to highlight the cylinder details and some weathering done by a washing of black oil paint diluted by enamel thinner.

Painting

The painting of a biplane has to be performed before mounting the upper wing: this added more risk to compromise the final job since a complex part of assembly and some more handling has to be done working on the finished surfaces, hence you have to suffer until the end before understanding if your work is acceptable or you just wasted your time.

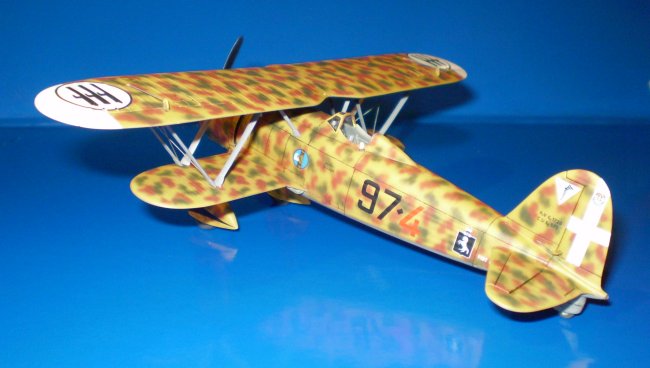

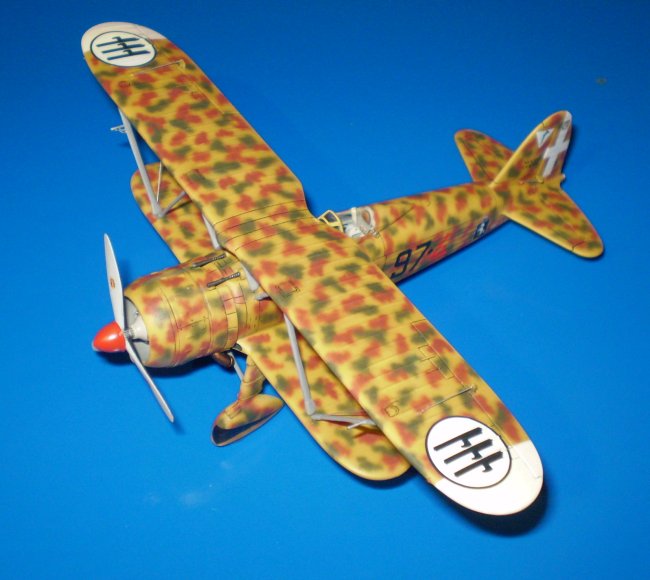

The version I chose to represent is the std CR42 early paint scheme: overall top and side surfaces in "Giallo mimetico 3" and irregular spots of "Verde mimetico 3" and "Marrone mimetico 2" .  All those colors are Lifecolor acrilics, just adding some brown to the "Giallo" since the original from the bottle looks too light once diluted and sprayed on the model.  The underside is "Grigio mimetico" obtained from Humbrol enamel 140 with some white added to make it lighter.  The upper wing tips have been painted in white as per the std tactical marking of the period.  The Italian paint scheme was not an easy task to complete and it was repeated twice before obtaining the desired look.  Once I completed the mimetic colors, I sprayed the whole model with Tamiya Acrylic Gloss Clear to get the model ready for the weathering and decalling.

Click on images below to see larger images





Decals and finishing:

The subject I represented is an aircraft in charge to the 4'Stormo, 9'Gruppo, 97a Squadriglia, based at El Adem, Cyrenaica, in November 1940.  Decals come from the Aeromaster sheet 48-188 (Fiat CR42 Falco Collection), but I just used the Squadron number, the Stormo and Gruppo badges, as they are very nice and accurate.  I preferred to replace the wing and side fuselage fasces of the national insignia with others coming from a Tauromodel decal sheet, instead.  After placing all the decals, I highlighted the panel lines with an oil dark gray paint washing.  The propeller was painted black on the back side and light grey on the front side, with spinner in red.  The final overall coat is a light spray of acrylic matt clear from Gunze Sangyo.

The final effort was to glue the upper wing to the rest of the aircraft, I already realized from previous trials that the wing struts were slightly shorter than what required to fit the wing distance, hence I had to split in two each of them and add some plastic to make their length adequate, and this was a quite boring exercise.

I completed the model adding the navigation lamps on the upper wing made from Cristal clear, the control wiring for rudder, ailerons and the bracing wires on the outer struts made from stretched sprue.

At the end I was quite satisfied of the final result, hope the same for you. Thanks for reading.

Elia

Photos and text © by Elia Pagani - IPMS Italy #2709
