1/48 Tamiya Dornier Do-335A Pfeil

by Ceki Erginbas

--------------------



Once again greetings to all ARC readers from Ceki Erginbas.

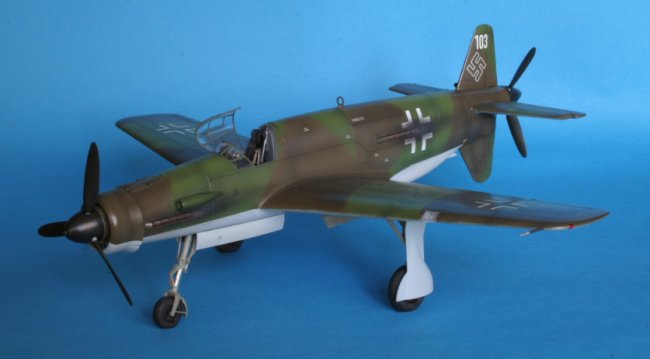

This is my latest model: 1/48 Dornier Do 335A Pfeil  from Tamiya.  And as many have mentioned before this is again another great model from Tamiya.

Click on images below to see larger images



In this model I have used the following detail  items:
  • -Cutting Edge’s  Do335 Arrow Part 2  (CED48131)  Decals
  • -Quickboost’s  resin exhaust set  (QB48049)
  • -True Details’s  resin bulged wheels  (48064)
  • -Eduard’s  color photo etch  Luftwaffe seatbelt set  (49002)

Click on images below to see larger images





Cutting Edge’s decals were very nice.  It would be fantastic if they were a little bit thinner.  But still great decals, and better than the inbox decals.

Quicboost’s exhausts and True Detail’s wheels  were  fantastic.  They have a very nice effect on the finished model.

Eduard’s seatbelts are perfect as usual.

In this model, I first completed the cockpit.  For the main cockpit color I have used   Testors Model Master 20709 RLM66 schwartzgrau.  For the front panel, I used the kit provided decal, and used Testors’s  clear parts cement to give the glass effect inside the indicators.

I have masked the canopy with bare metal foil.

Click on images below to see larger images



After that I assembled the model overall, without any need of putty.  Before painting, I applied a pre-shade of Tamiya XF-1 Flat black on the panel lines.  After that, I applied the RLM 76, 82 & 83 colors.  For this purpose I decided to use something new and  sprayed Vallejo  acrylics thinned with drinking water.  This was my first time using Vallejo with an airbrush and I have to admit I wasn’t very happy  with its application.   Maybe if I had used another solvent I could have been a happier modeler now.   When I thinned the paints, they were either too thin to hold on the surface, or  too thick that they  constantly kept  drying on the nozzle of the airbrush.

Click on images below to see larger images



 The colors I used were  70907 Pale Grey Blue, 70823 Luftwaffe Cam. Green and 70887 Brown Violet.  After my struggle with the airbrush was over, I wasn’t really happy with the tones.  And with this problematic application it seemed impossible to  have the post shade tonal variations properly.  So I decided to spray highly thinned  Tamiya XF-3 yellow & XF-5 green mixture on the Luftwaffe Cam. Green, and Tamiya XF-62 Olive Drab over the  Brown Violet.  After this application the colors seemed ok for me and I sealed them with a coat of Tamiya X-22 .

Click on images below to see larger images





After the decal application, another coat of X-22, and a little wash of thinned  burnt umber oil paint,  final assembly was done.  The exhaust stains were done using various shades of black and brown, with low pressure.

Click on images below to see larger images





Assembly of the landing gear was a little tricky, but turned out ok at the end.

As a result, I really enjoyed building this model, and recommend it to every modeler who likes weird looking aircraft more than  the regular looking ones, like I do. J

Happy modelling everyone!

Ceki

Click on images below to see larger images











Photos and text © by Ceki Erginbas
