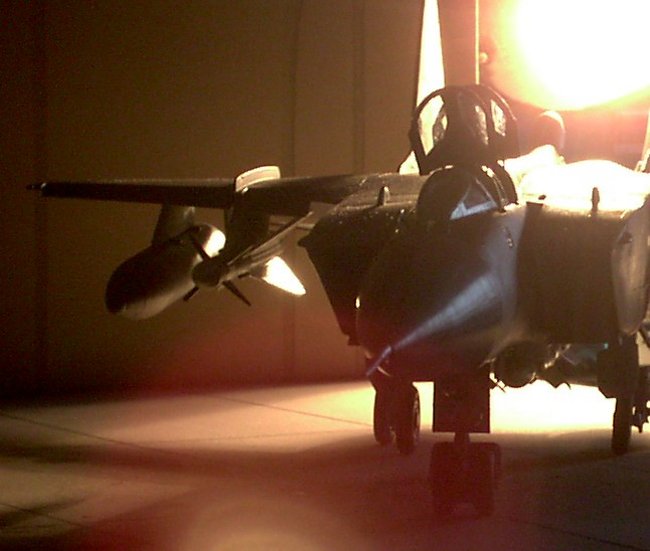

After more than one
year, I finished my MiG-31 BS.
This is the first version
of this plane, which was updated to the second (MiG-31 B ), but without the air
refueling system and gun.
Click on
images below to see larger images
|
|
|
|
I saw this kit on
e-bay, and I
thought I
have to have it ->I
paid 48 EURO`s ( that`s about 75 US$) !!!! It is the only existing kit.
I found a few
drawing of the MiG-31, which I took as references:
http://win.www.airwar.ru/other/draw/mig31.html

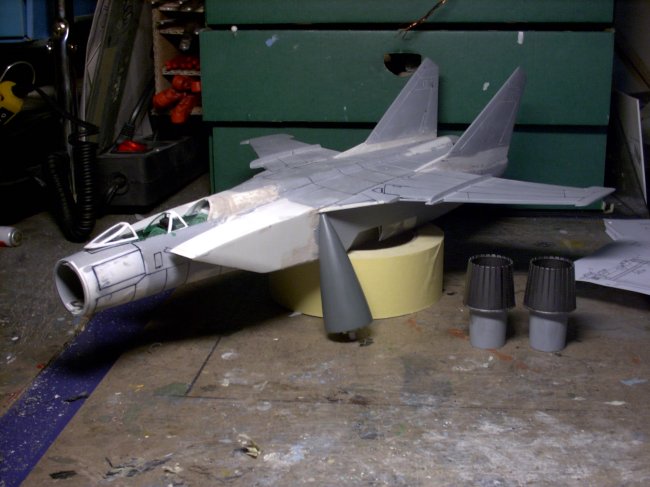

I modify.........it might be easier
to tell you, which parts I didn't change: the tailerons and the front gearwheels
( take a look at jpg.10 ) !!!!!!!!

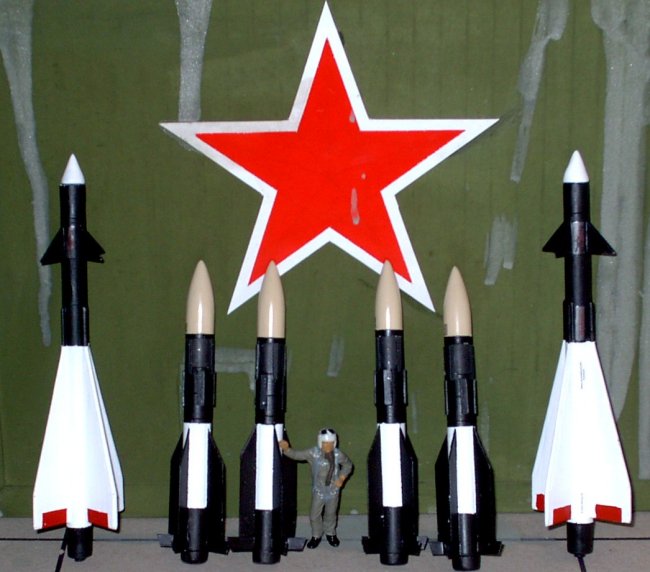

Weapons: the R-40 was taken by
the Revell MiG-25PD, and the R-33 are modify AIM-54 PHOENIX, which I took from a
Monogram f-14 kit.
Maingear wheels: this parts were
taken by OZE Su-7 BKL kit's.
Ejectionseat: this are K-36M form
PAVLA
Things like radom and additional
fueltank's, I built myself.
Click on
images below to see larger images
|
|
|
|
I'm working on a complete MiG-
and Su-collection in 1/48, and this plane was one of the missing links. Now
I'm trying to find a 1/48 kit from the Mig-9 and Su-24.
Armin
Click on
images below to see larger images
|
|
|
