For my first submission for ARC, this is a Spitfire Mk.XVI model.  I used the Heller kit which I tried to improve.  I add few accessories : resin item from Hi-Tech, photoetched set from Eduard, undercarriage legs from Aeroclub and some scratch. The decals are from a SP-Decals sheet.

It was a hard project to do (due to my modest skills), started in 2003 or 2004 and only finished in the beginning of 2008.

Click on images below to see larger images

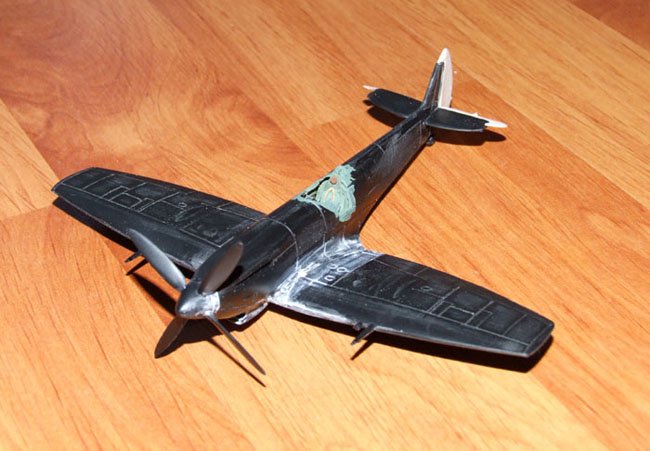

About the building, it's my first major attempt for to improve a kit :

  • I rescribed the panel lines,

  • from the Hi-Tech resin transkit, I used the floor, sides walls, back wall, tail's mobile surfaces and wheels,

  • from the Eduard PE set (a zoom set initially dedicated to the Tamiya Spitfire V), I used the instrument panel, the seat with the belts and the armor plate, and few little things,

  • while finishing the model, I lost one undercarriage leg, I had to find in emergency a replacement from Aeroclub Models,

  • Some scratch was also necessary to complete the cockpit detailing and to create a pitot tube and the windshield mirror, the antenna is from stretched sprue.

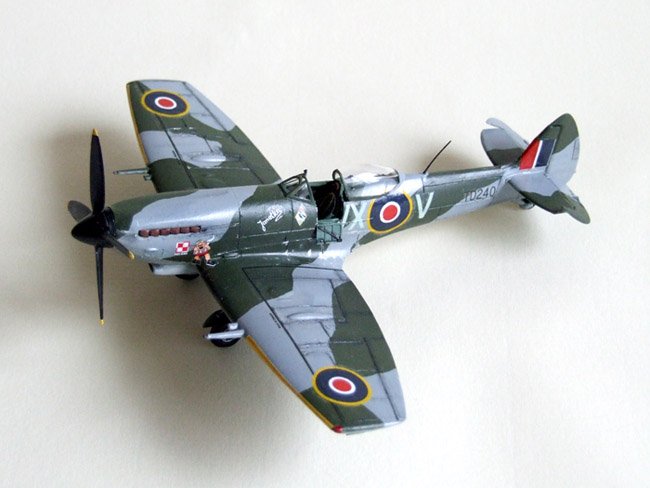

For the colors, the only option provided by Heller now is for a 349th Sqn. aircraft painted in Dark Green, Dark Grey and Medium Sea Gray (the bare-metal option has disappeared). Not satisfied with it (the letters are too green), I took me some time to find a replacement and I discovered the SP-Decals sheet dedicated to Free Polish Spitfire XVI. The model was painted by brush with Humbrol Enamels. The option chosen depicts the aircraft flown by few famous polish pilots : B. Kaczmarek, A. Gabszewicz, S.Wintorzenc...

I hope you liked it.  Happy modelling.

Jean-Paul Wrona
