This
is the Revell Germany 767-300, cut down to a -200 size by removal of a section
fore and aft of the wing per side. I referenced Boeing's site for the
dimensions of the -200 and -300 fuselages and proceeded to cut. I made an
error and didn't take into consideration the measurement from the nose to the
aft end of the tail, thus my conversion is .75 inches too long (equivalent to 9
scale feet). Not too bad considering it's the first airliner I've cut
down!
Click on
images below to see larger images
The
kit's windows were filled from the inside with sheet styrene then filled
from the outside with superglue; the seams where the fuselage was
dissected were reinforced with sheet styrene and I used superglue to fill
the gaps. The tail bumper below the rear was cut off and filled as
this was only installed on the -300 series. Once the gaps were
filled, the entire model was primed with Mr. Surfacer out of the spray can
in preparation for the metal finish.

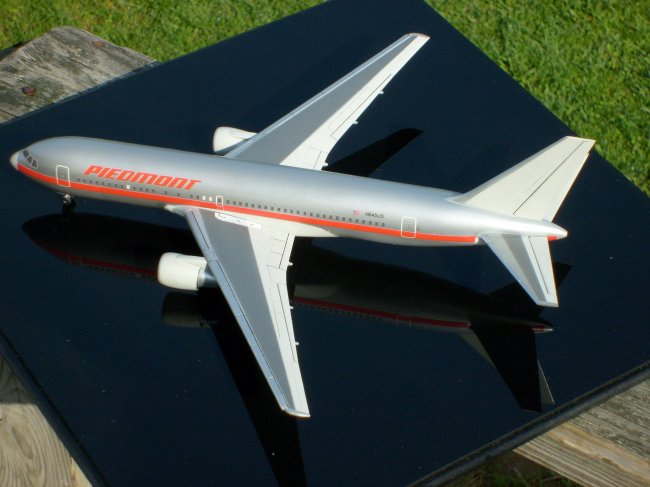

I
used Alclad II Aluminum for the airframe's natural metal finish; on
the engine's hot areas I used Alclad II chrome and exhaust over a gloss
black base coat. The gray on the airframe was Model Master Voodoo Gray to
sub for the Boeing gray; on the wings I used Model Master Gunship Gray 36118 to
represent Coroguard in the centers of the wing and horizontal stabs. The
decals are Draw Decals' Piedmont/US Air set, they go on great and the carrier
film virtually disappears after they've dried. I did have trouble with the
decal going around the nose; I fixed that by cutting it around the radome and
painting the radome so it looks like a replacement nose. I like the look
of the 767-200 but the nosegear looks too big for the fuselage; the front of the
jet doesn't look as "porky" as the reference pictures I saw on http://www.airliners.net. This was a fun build, challenging for a hack builder like
me; I've already started another Revell 767 and it's just about on dimension
wise (unlike this one!). I improved my skills in conversions and working
with NMF; I now have a heavy to add to my Piedmont/US Airways heritage
collection, even if it does dwarf the 2 previously built 737-400 Minicraft kits.
Max Tollens Jr.
|
